AVENTICS 0822406412 Pneumatic Piston Rod Cylinder - , 16mm Bore, 25mm Stroke, KHZ Series, Single Acting

Name: AVENTICS 0822406412 Pneumatic Piston Rod Cylinder - , 16mm Bore, 25mm Stroke, KHZ Series, Single Acting
Brand: Aventics
SKU: 0822406412
Availability: OutOfStock

Part Number : 0822406412

Availability: Sold out

Detailed Description
Specifications

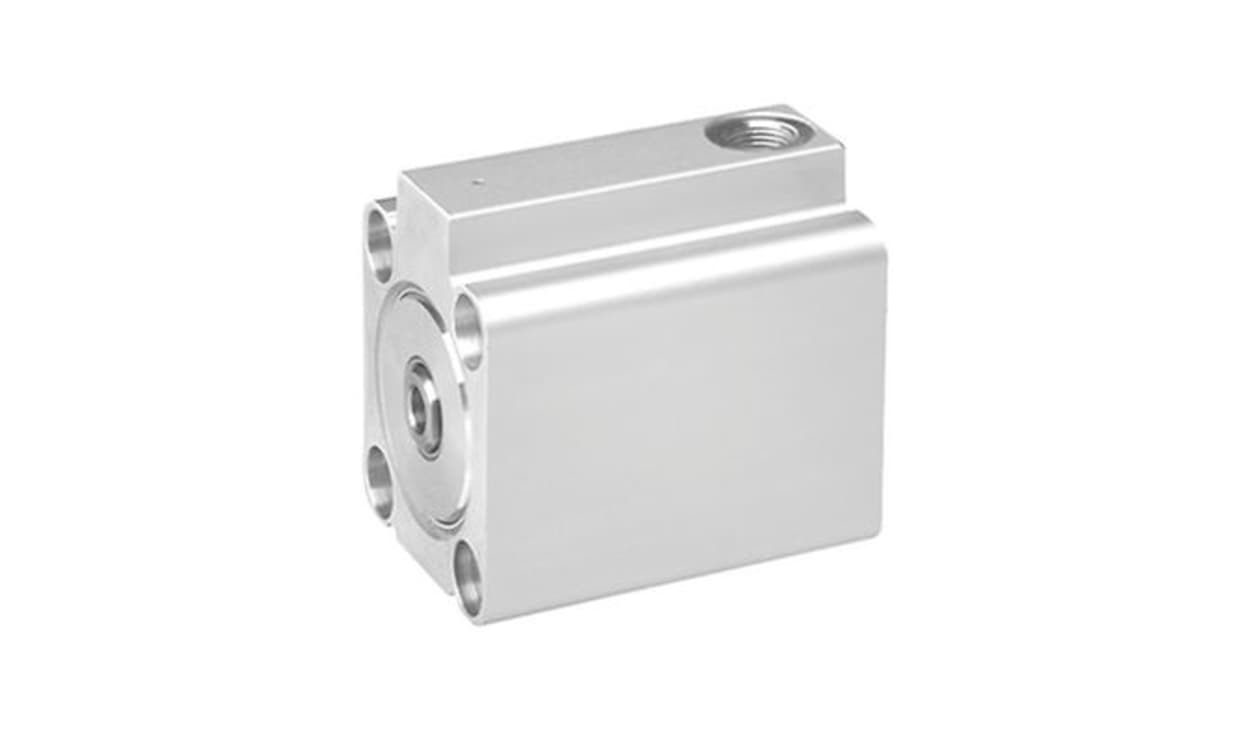

The Aventics Short Stroke Cylinder, designed specifically for compact installations, offers exceptional performance in restricted spaces. Its single-acting mechanism ensures reliable functionality while being retracted without pressure, making it ideal for various industrial applications. The cylinder's elastic cushioning provides a gentle impact, enhancing its durability and longevity. Built to industry standards, this product withstands demanding environments, supporting temperatures ranging from -25 °C to 80 °C.

Durable construction with stainless steel and aluminium materials
Capable of operating under varying environmental conditions
Lightweight design facilitates easy handling and installation
Compatible with a wide range of compressed air mediums

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822406412
Stroke	25mm
Bore	16mm
Action	Single
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+80°C
