AVENTICS 0822406481 Pneumatic Piston Rod Cylinder - , 80mm Bore, 10mm Stroke, KHZ Series, Single Acting

Name: AVENTICS 0822406481 Pneumatic Piston Rod Cylinder - , 80mm Bore, 10mm Stroke, KHZ Series, Single Acting
Brand: Aventics
SKU: 0822406481
Availability: OutOfStock

Part Number : 0822406481

Availability: Sold out

Detailed Description
Specifications

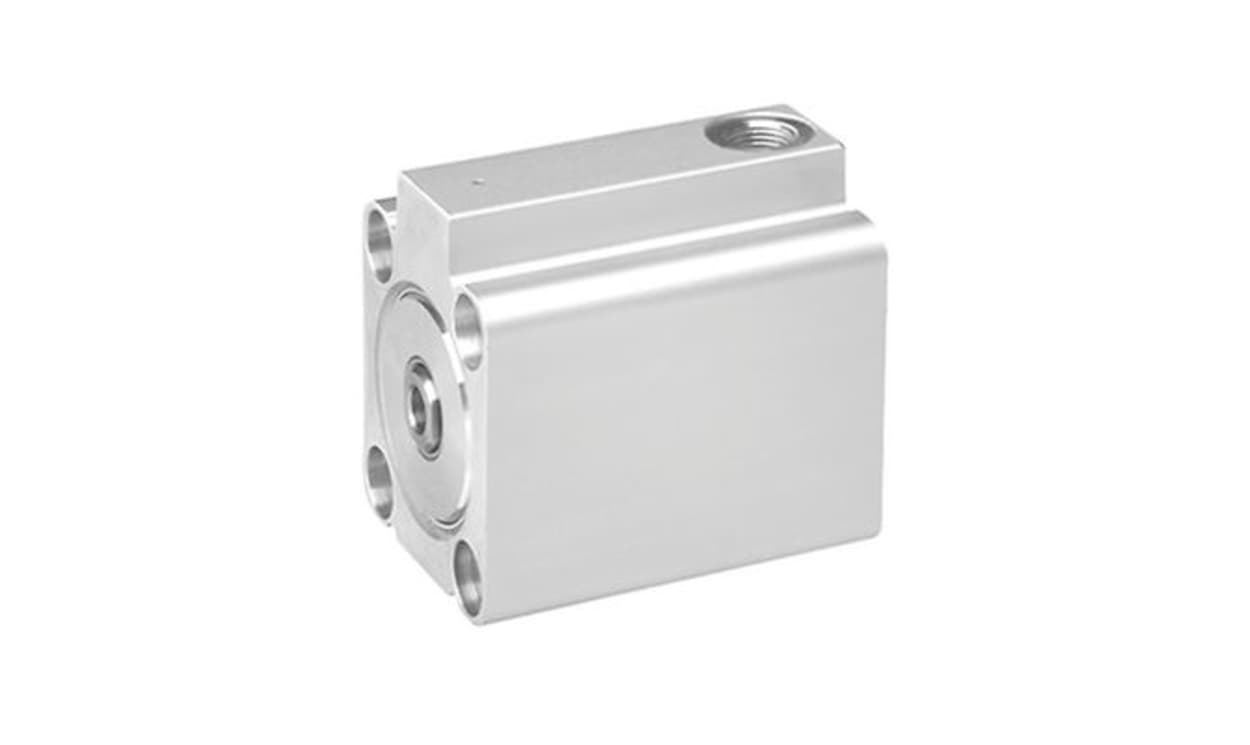

The Aventics Series KHZ short-stroke cylinder is an innovative solution tailored for applications requiring compact and efficient machinery integration. This non-standard cylinder is specifically designed for tight installation spaces while delivering high performance with its robust construction and reliable functionality. Its single-acting principle ensures a straightforward operation, retracting without pressure, which enhances safety and reduces energy consumption. Suitable for a wide array of industries, this cylinder offers exceptional adaptability, making it ideal in environments with strict dimensional constraints. With effective elastic cushioning and a magnet-integrated piston, this model ushers in precise control and responsiveness, ensuring smooth operation even under challenging conditions.

Designed for tight installation spaces, maximising efficiency
Single-acting mechanism reduces energy consumption during operation
Robust aluminium and stainless steel construction enhances durability
Elastic cushioning improves operational smoothness and component longevity
Integrated magnetic piston allows for enhanced control and positioning accuracy
Meets industry standards for environmental considerations
Versatile application range across various sectors including industrial settings

Brand	AVENTICS
Manufacturer Series	KHZ
Model Number p	0822406481
Action	Single
Stroke	10mm
Bore	80mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
Minimum Operating Temperature	-25°C
Weight	1.3kg
Maximum Operating Temperature	+80°C
