AVENTICS 1332502000 Roundline Cylinder - , 25mm Bore, 25mm Stroke, ICM Series, Double Acting

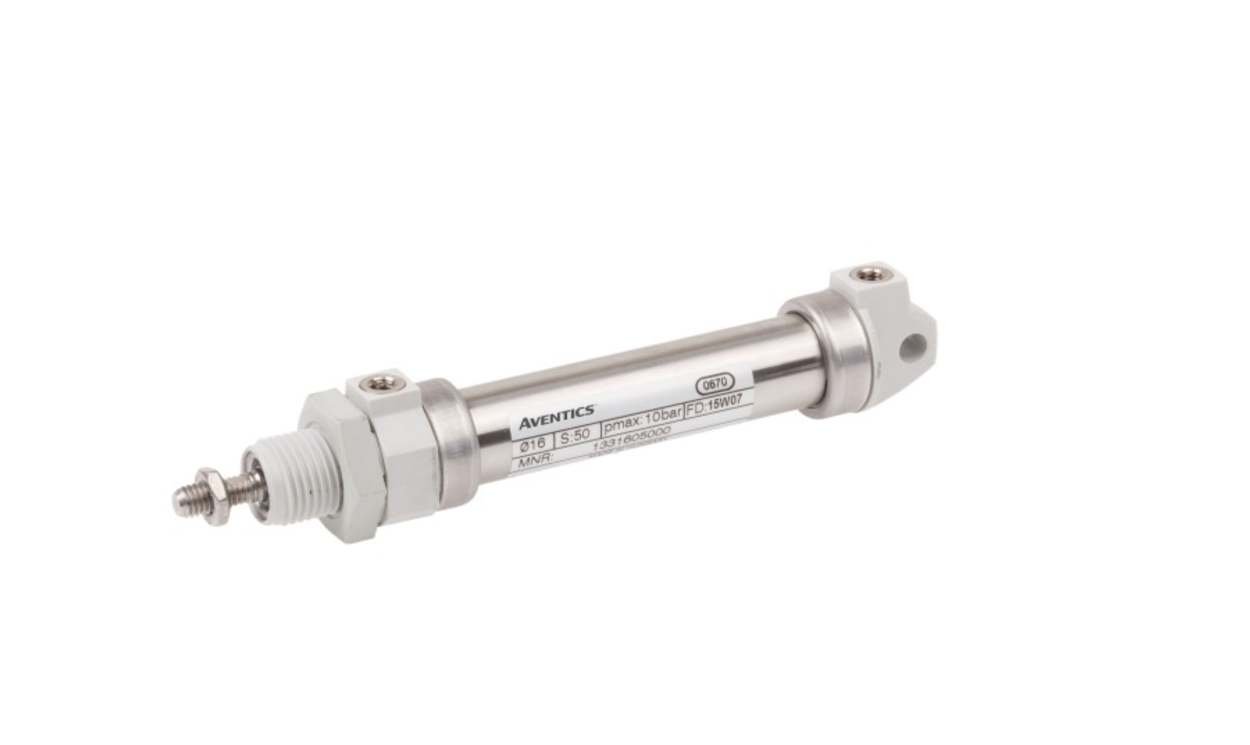

Name: AVENTICS 1332502000 Roundline Cylinder - , 25mm Bore, 25mm Stroke, ICM Series, Double Acting
Brand: Aventics
SKU: 1332502000
Availability: OutOfStock

Part Number : 1332502000

Availability: Sold out

Detailed Description
Specifications

The Aventics mini cylinder in the Series ICM is a highly efficient solution designed to deliver impressive performance in demanding applications. Crafted with high corrosion-resistant materials, this cylinder is ideally suited for use in environments like food processing where hygiene and reliability are paramount. The use of stainless steel for the cylinder tube and piston rod ensures longevity, while the high-quality polymer covers provide added robustness. With a versatile double-acting design, the Series ICM caters to various operational needs without compromising on speed or effectiveness. This product merges cutting-edge technology with ease of use, setting a new standard for mini cylinders in industrial applications.

Corrosion-resistant construction ensures durability in harsh environments
Designed for efficiency and reliability in food processing applications
Double-acting functional principle optimises operational performance
Magnetic piston enhances responsiveness for swift action
Elastic cushioning system protects components and improves functionality
Wide temperature range accommodates diverse operating conditions
Compact design allows for installation in tight spaces, enhancing versatility
Utilisation of high-quality polymer provides additional protection
Lightweight design facilitates easy handling and installation

Brand	AVENTICS
Manufacturer Series	ICM
Model Number p	1332502000
Action	Double
Stroke	25mm
Bore	25mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-20°C
