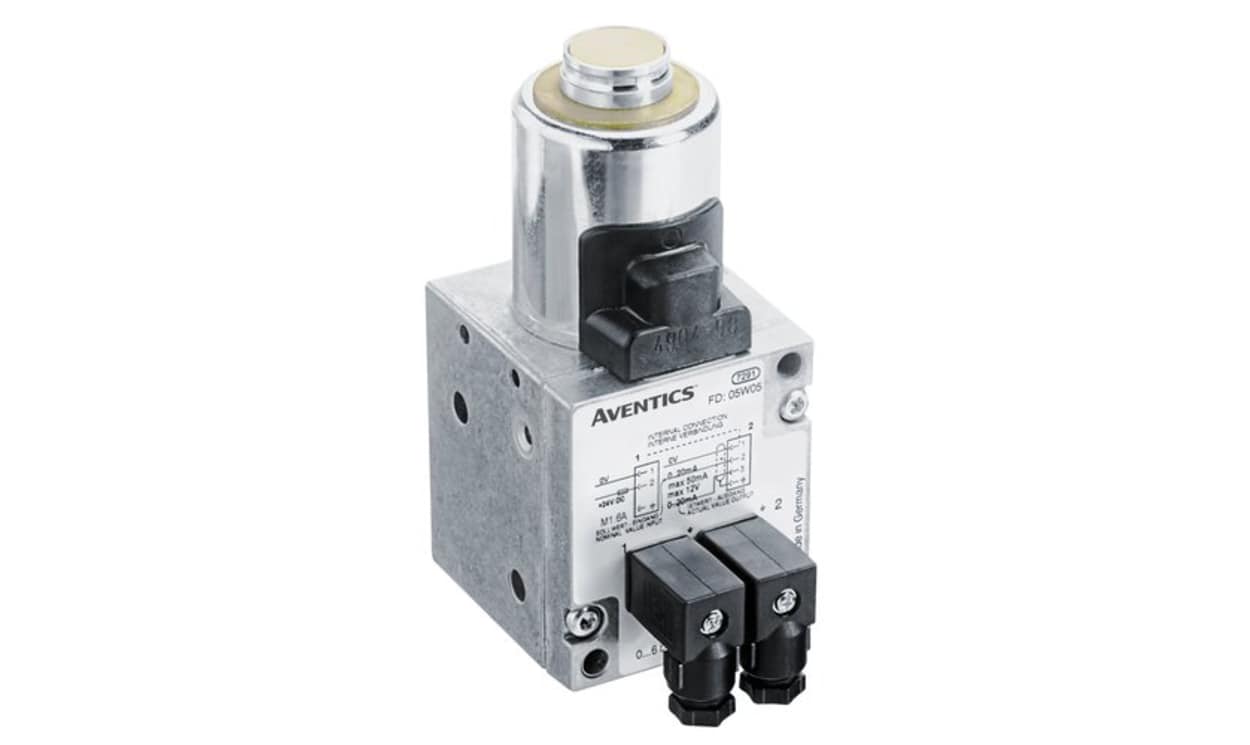

AVENTICS 5610141330 3/3 Pneumatic Solenoid Valve - Solenoid/Spring ED05 Series 24V dc

Name: AVENTICS 5610141330 3/3 Pneumatic Solenoid Valve - Solenoid/Spring ED05 Series 24V dc
Brand: Aventics
SKU: 5610141330
Availability: OutOfStock

Part Number : 5610141330

Availability: Sold out

Detailed Description
Specifications

Series ED05 Pressure Regulator

Poppet type valve
Analogue control 0-10V, 0-20mA or 4-20 mA
< 0.06 bar hysteresis
IP65
0 °C → +70 °C
ISO 15217
form C electrical plug connections
Requires oil free (0-1mg/m³max) dry air filtered to 50μm

Brand	AVENTICS
Function	3/3
Actuation Type	Solenoid/Spring
Manufacturer Series	ED05
Mounting Style	Manifold
Solenoid Voltage	24V dc
Solenoid Fitted	Yes
Body Material	Die Cast Zinc
Maximum Flow Rate	1000L/min
Minimum Operating Pressure	0.5bar
Maximum Operating Pressure	7bar
Minimum Operating Temperature	0°C
Maximum Operating Temperature	+70°C
Thread Size	1/4in
