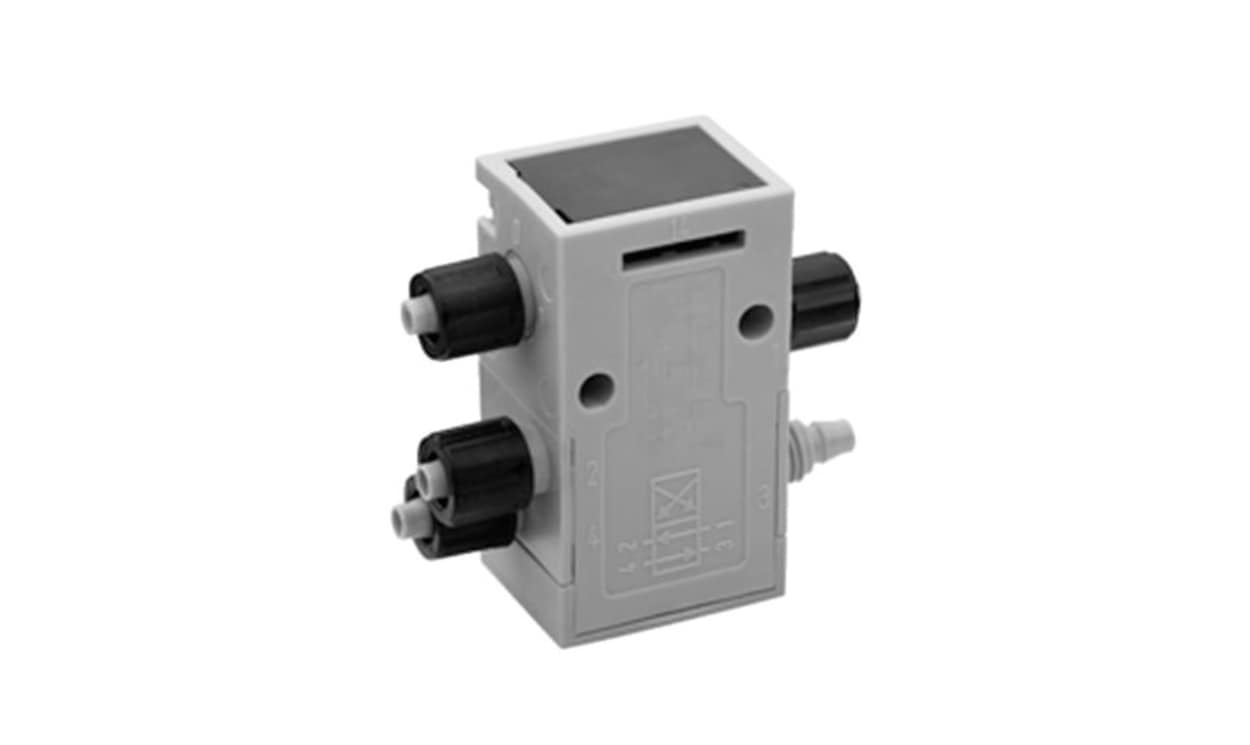

AVENTICS 5718400000 4/2 Pneumatic Solenoid Valve - Pilot/Pilot 840 Series

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS 5718400000 4/2 Pneumatic Solenoid Valve - Pilot/Pilot 840 Series

Name: AVENTICS 5718400000 4/2 Pneumatic Solenoid Valve - Pilot/Pilot 840 Series
Brand: Aventics
SKU: 5718400000
Availability: OutOfStock

Part Number : 5718400000

Availability: Sold out

Detailed Description
Specifications

Pilot Valves - 840 Series

Can be used individually or manifold mounted
200 l/min flow rate

Rexroth 840, 740 & 579 Series

Snap together valve systems enabling custom-size systems to be assembled.
Thermoplastic construction - low weight system
Valves have built-in hose barbs for easy push-on tube connection
Working pressure range: 1.5 to 10 bar
Temperature range: -15 to +50°C
Protection rating: IP65

Brand	AVENTICS
Function	4/2
Actuation Type	Pilot/Pilot
Manufacturer Series	840
Mounting Style	Manifold
Number of Ports	4/2
Body Material	Polyoxymethylene
Maximum Flow Rate	200L/min
Minimum Operating Pressure	1.5bar
Maximum Operating Pressure	8bar
Minimum Operating Temperature	-15°C
Maximum Operating Temperature	+60°C
