AVENTICS 5727450220 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot 740 Series 24V dc

Name: AVENTICS 5727450220 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot 740 Series 24V dc
Brand: Aventics
SKU: 5727450220
Availability: OutOfStock

Part Number : 5727450220

Availability: Sold out

Detailed Description
Specifications
Downloads

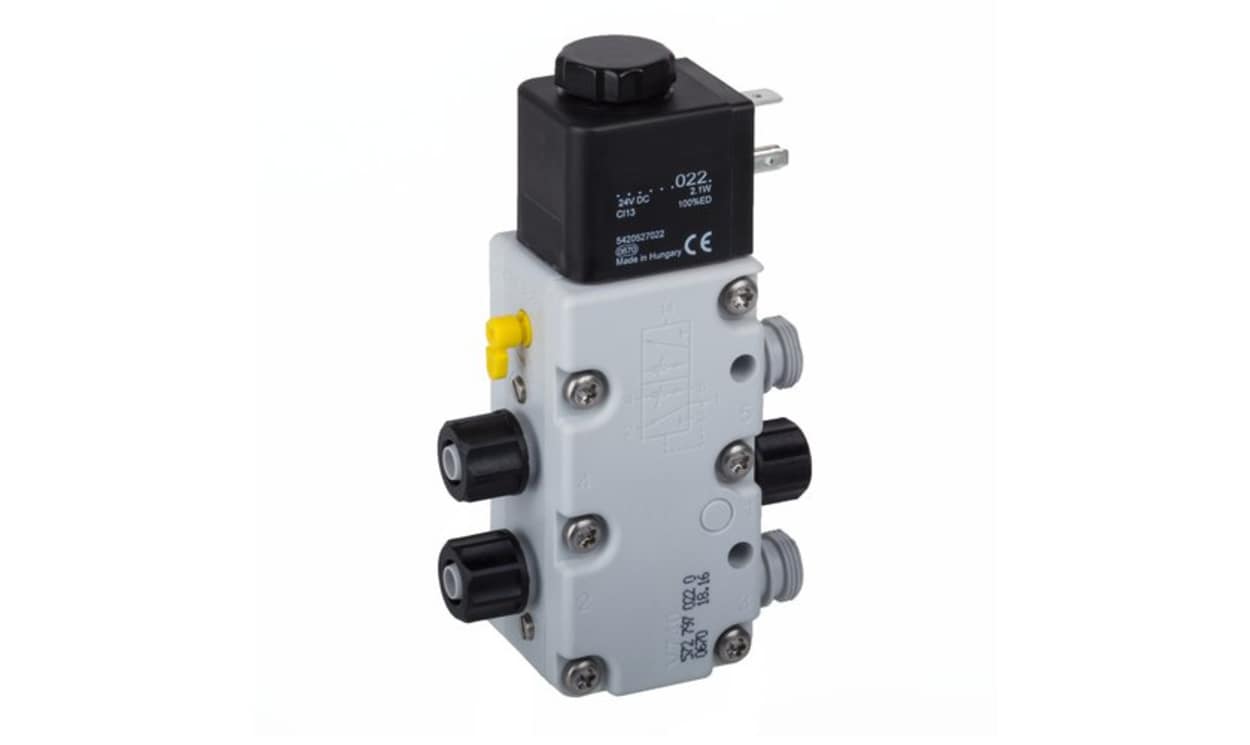

Aventics Pneumatic Solenoid Valve

The Aventics 740 series 4/2 port directional valve has a maximum flow rate of 950L/min. This polyacrylamide pneumatic solenoid valve has a 10x1 connection output and input with a 14x1 exhaust connection. This valve has an operating pressure ranging between 1.5bar and 10bar. Its solenoid voltage is 24VDC with 2.1W power consumption.

Features and Benefits

Integral flow regulators for speed control
Operating temperature ranging between -15°C and 50°C
Snap together valve systems enabling custom-sized systems to be assembled
Thermoplastic construction gives low weight system
Valves have built-in hose barbs for easy push-on tube connection

Certifications

EN 175301-803:2006
IP65 rated

Brand	AVENTICS
Function	5/2
Actuation Type	Solenoid/Pilot
Manufacturer Series	740
Mounting Style	Manifold
Solenoid Voltage	24V dc
Solenoid Fitted	Yes
Number of Ports	5/2
Body Material	Polyarylamide, Polyoxymethylene
Maximum Flow Rate	950L/min
Solenoid Power Consumption	2.1W
Minimum Operating Pressure	1.5bar
Maximum Operating Temperature	+50°C
Maximum Operating Pressure	10bar
Minimum Operating Temperature	-15°C

AVENTICS 5727450220 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot 740 Series 24V dc

DOWNLOAD CATALOG
