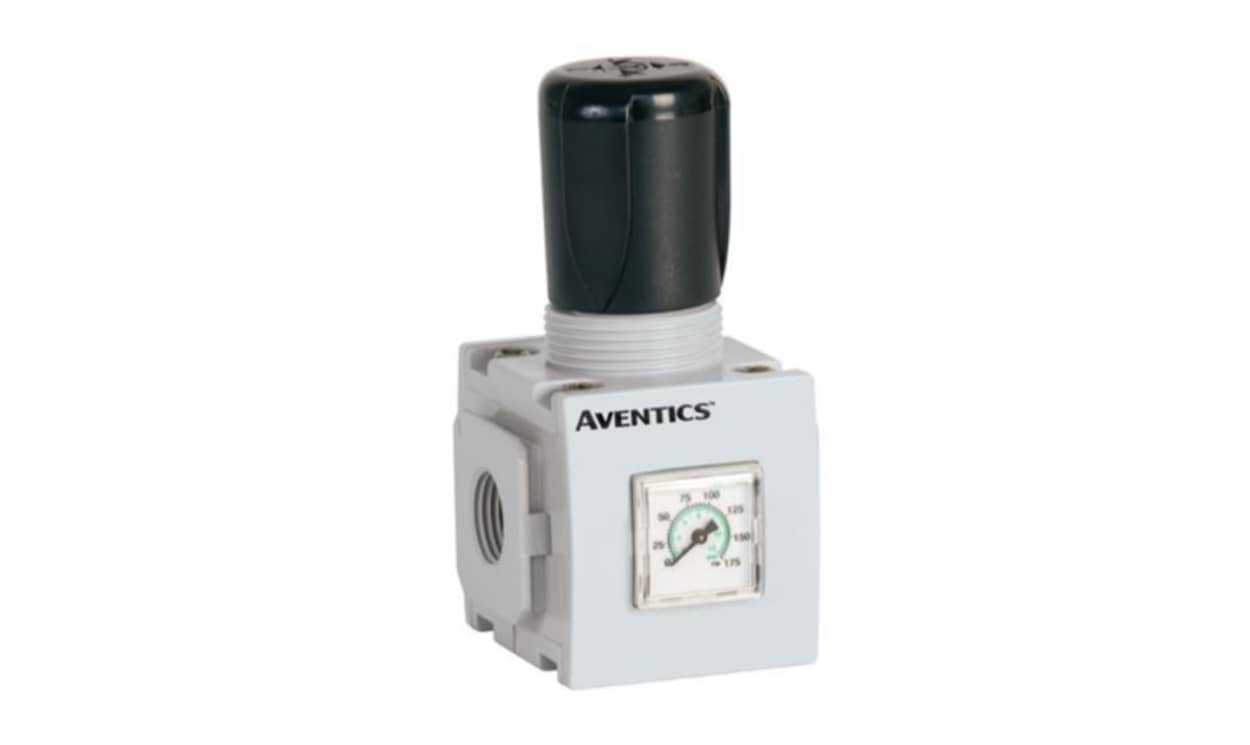

AVENTICS G651AR002GA00H0 G 1/4 Pneumatic Regulator - 0.5bar to 10bar, 1/4in, 16bar max. input
Part Number : G651AR002GA00H0
For pricing, please contact our experts.
- Detailed Description
- Specifications
651/652 Series Regulator
A high flow regulator from ASCO’s 651/652 series or air preparation equipment. Threaded ports allow this pneumatic regulator to be mounted individually or with other equipment from the 651/652 series. The 651/652 series are a modular air preparation system that is easy to install and can be easily configured to suit various compressed air applications.
Features and Benefits
• High flow with a wide range of adjustable output pressure ranges
• Available with relieving, non-relieving and internal flow check options
• Low profile gauge bar/PSI
• Optional extended temperature range of -40 °C to +80 °C
• Threaded ports allow for individual or modular mounting
Regulators and Filter Regulators
| Brand | AVENTICS |
| Port Connection | G 1/4 |
| Maximum Outlet Pressure | 10bar |
| Minimum Outlet Pressure | 0.5bar |
| Maximum Input Pressure | 16bar |
| Manufacturer Series | 651 |
| Pressure Gauge Port Size | G 1/4 |
| Port Connection Thread Size | 1/4in |
| Pressure Gauge Port Thread Size | 1/4in |
| Typical Flow Rate | 2060L/min |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +50°C |
| Overall Length | 50mm |
| Overall Dimensions | 50 x 61.4 x 103mm |
| Overall Height | 103mm |
| Proof Pressure | 0.3bar |
| Overall Width | 61.4mm |
| Pressure Gauge Port Thread Standard | G |
AVENTICS G651AR002GA00H0 G 1/4 Pneumatic Regulator - 0.5bar to 10bar, 1/4in, 16bar max. input
