AVENTICS R412014216 Pneumatic Piston Rod Cylinder - , 40mm Bore, 125mm Stroke, PRA Series, Double Acting

Name: AVENTICS R412014216 Pneumatic Piston Rod Cylinder - , 40mm Bore, 125mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R412014216
Availability: OutOfStock

Part Number : R412014216

Availability: Sold out

Detailed Description
Specifications

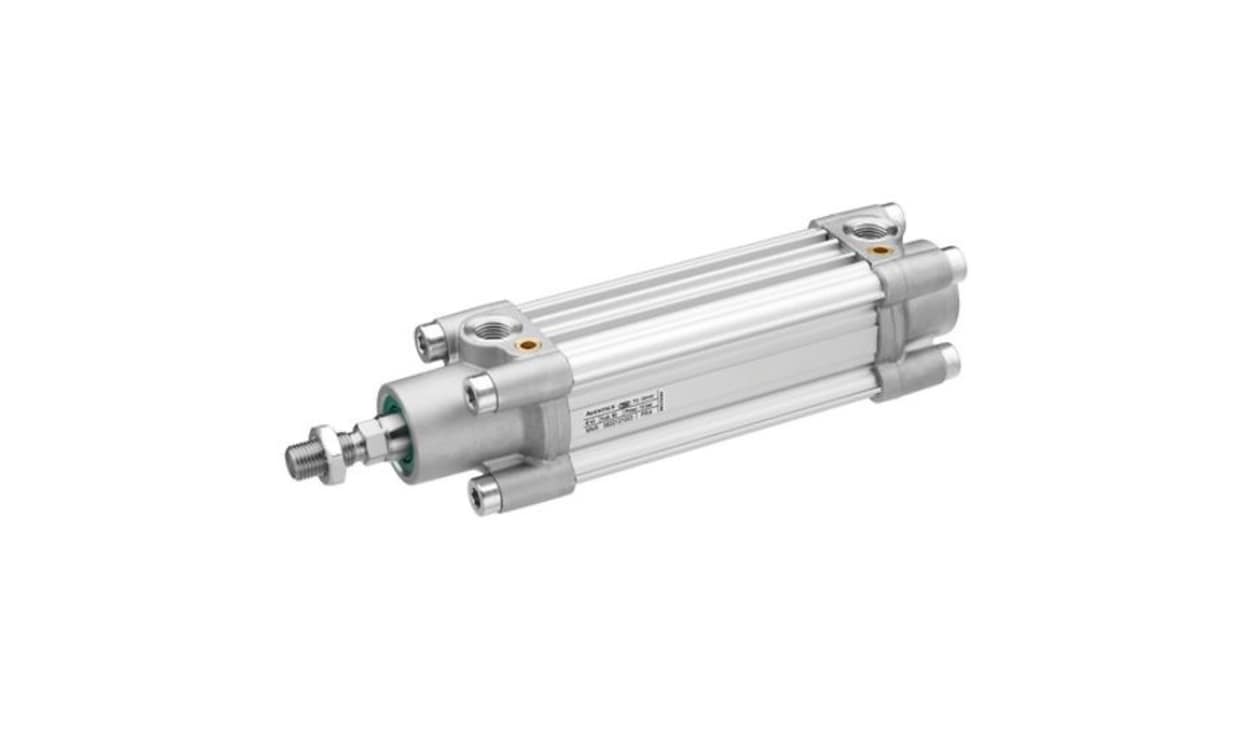

The Aventics profile cylinder from the PRA series is engineered to excel in a diverse range of industrial applications, adhering to ISO 15552 standards. Its compact design ensures a seamless fit in various automation environments, while integrated sensor slots enhance usability and efficiency. With its double-acting functional principle, this cylinder delivers reliable performance across industries, from general automation to specific sector applications. The robust construction features materials like stainless steel and die-cast aluminium, enabling it to endure challenging conditions. With a wide operational temperature range and adjustable pneumatic cushioning, this cylinder ensures optimal performance in demanding environments, proving itself as a versatile choice that meets the needs of modern industry.

Designed for a broad spectrum of industrial applications
Integrates sensor slots for enhanced functionality
Constructed with durable materials to withstand tough conditions
Wide operational temperature range supports diverse environments
Pneumatic adjustable cushioning ensures smooth operations
Compatible with various automation setups for improved versatility
Efficient performance with a double-acting mechanism
Optimised for minimal maintenance over its lifecycle

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R412014216
Bore	40mm
Action	Double
Stroke	125mm
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+120°C
Minimum Operating Temperature	-10°C
