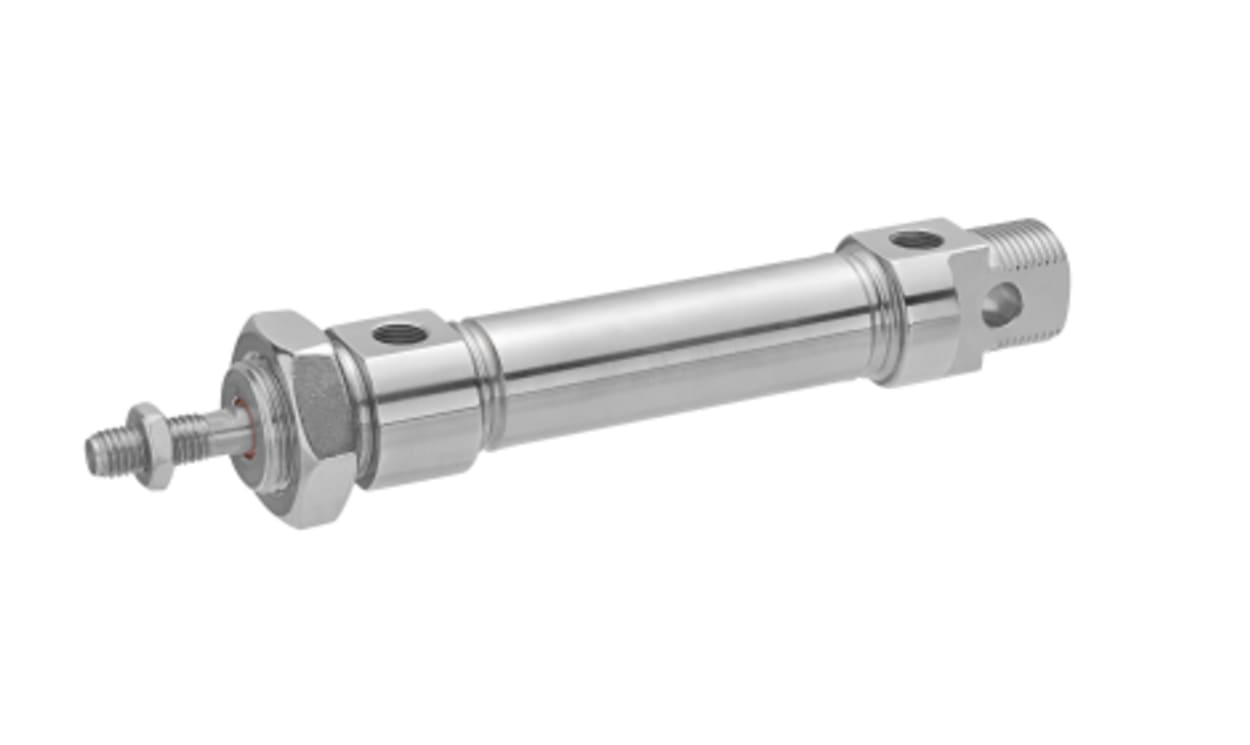

AVENTICS R412020491 Roundline Cylinder - , 25mm Bore, 160mm Stroke, CSL-RD Series, Double Acting

Name: AVENTICS R412020491 Roundline Cylinder - , 25mm Bore, 160mm Stroke, CSL-RD Series, Double Acting
Brand: Aventics
SKU: R412020491
Availability: OutOfStock

Part Number : R412020491

Availability: Sold out

Detailed Description
Specifications

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R412020491
Action	Double
Bore	25mm
Stroke	160mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
