AVENTICS R412020753 Roundline Cylinder - , 50mm Bore, 100mm Stroke, RPC Series, Double Acting

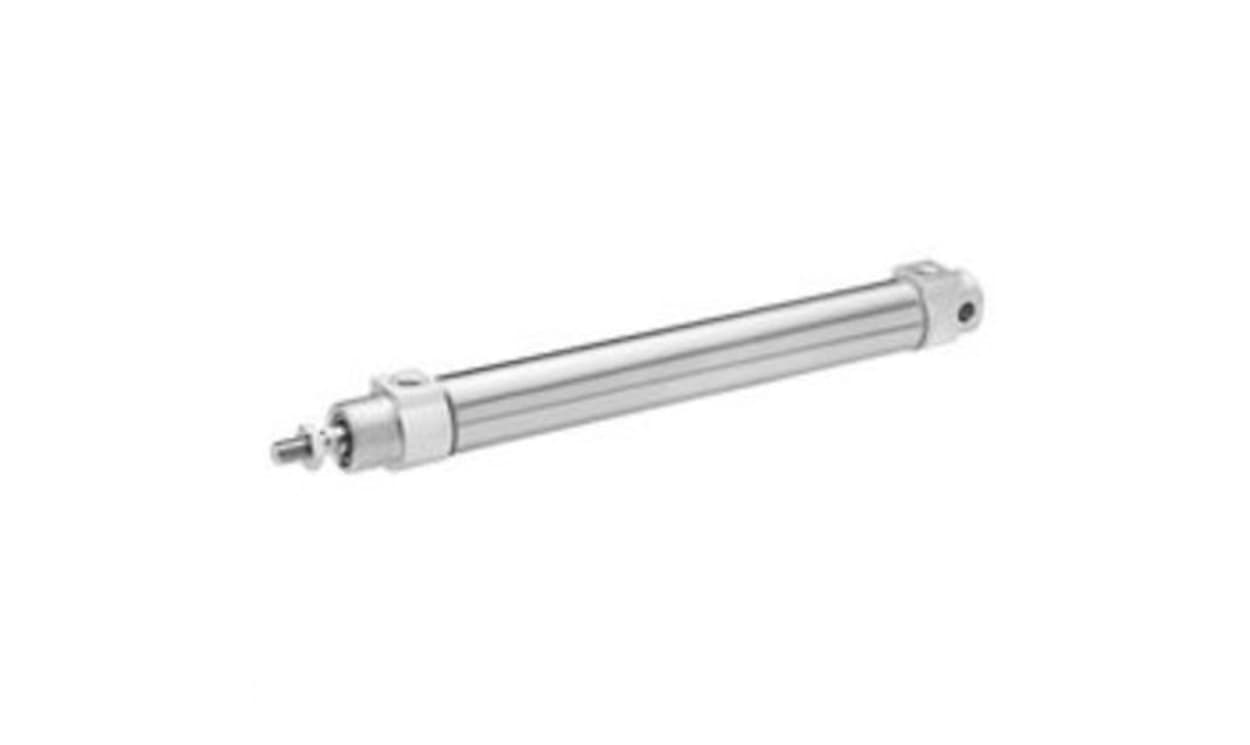

Name: AVENTICS R412020753 Roundline Cylinder - , 50mm Bore, 100mm Stroke, RPC Series, Double Acting
Brand: Aventics
SKU: R412020753
Availability: OutOfStock

Part Number : R412020753

Availability: Sold out

Detailed Description
Specifications

The Aventics round cylinder from the series RPC is engineered for optimal performance in industrial applications. Designed with versatility in mind, the RPC cylinder offers a comprehensive range of connection options that caters to both standard machine automation and specific packaging needs, especially in the food industry. Its construction emphasises cleanliness, making it suitable for environments where hygiene is paramount. The cylinder features a robust double-acting mechanism, ensuring efficient operation, while its adjustable pneumatic cushioning enhances user control. With a harmonious blend of practicality and advanced engineering, the RPC series round cylinder is quintessential for those seeking reliability in high-demand settings.

Offers a myriad of connection options for flexible integration
Constructed for ease of cleaning, ideal for the food industry
Provides double-acting functionality for efficient power application
Features pneumatic adjustable cushioning for enhanced performance
Compatible with both standard machine applications and specialised needs
Supports a wide ambient temperature range for diverse operating conditions
Built with high-quality materials ensuring durability and longevity
Designed to perform optimally even in environments with stringent hygiene standards

Brand	AVENTICS
Manufacturer Series	RPC
Model Number p	R412020753
Stroke	100mm
Action	Double
Bore	50mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
