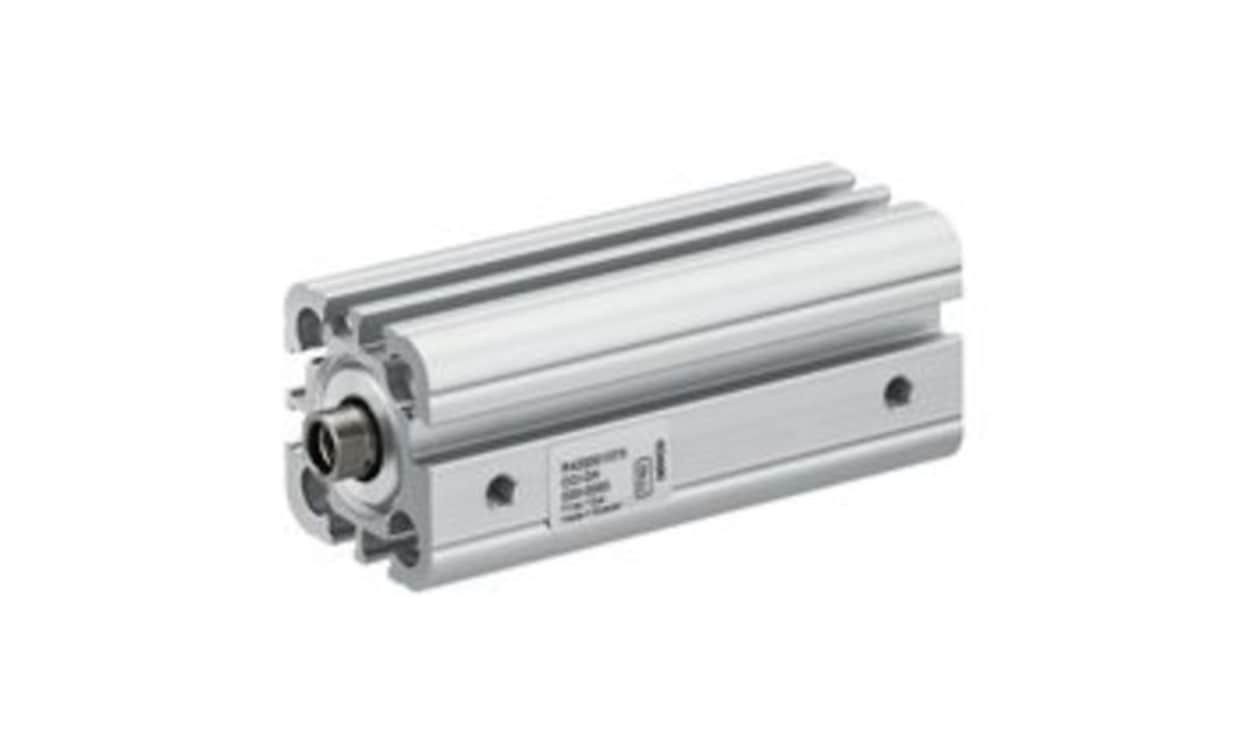

AVENTICS R422001085 Pneumatic Compact Cylinder - , 32mm Bore, 60mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001085 Pneumatic Compact Cylinder - , 32mm Bore, 60mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001085
Availability: OutOfStock

Part Number : R422001085

Availability: Sold out

Detailed Description
Specifications

The Aventics Series CCI compact cylinder, adhering to ISO 21287 standards, exemplifies precision engineering and innovative design tailored for industrial applications. Its compact structure not only optimises space but also features an easy-to-clean design that enhances hygiene in various environments. Engineered for extended strokes and elevated performance in cycle times, this cylinder efficiently manages moving masses, making it an ideal choice for demanding operations. The versatility of sensor installation along the entire length of the cylinder adds to its practical utility, ensuring seamless integration into existing systems. The Series CCI is a reliable and efficient solution for those seeking high-quality pneumatic actuation.

Double-acting functionality ensures optimal performance in diverse settings
Elastic cushioning moderates impact, enhancing longevity and efficiency
Integrated magnetic piston facilitates rapid sensor positioning
Robust construction using premium materials guarantees reliability and durability
Optional ATEX certification available for applications in hazardous locations
Wide operating temperature range accommodates various environmental conditions
Easily configurable for specific requirements via online tools
Comprehensive dimensional options available to suit a variety of installation needs

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001085
Stroke	60mm
Action	Double
Bore	32mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
