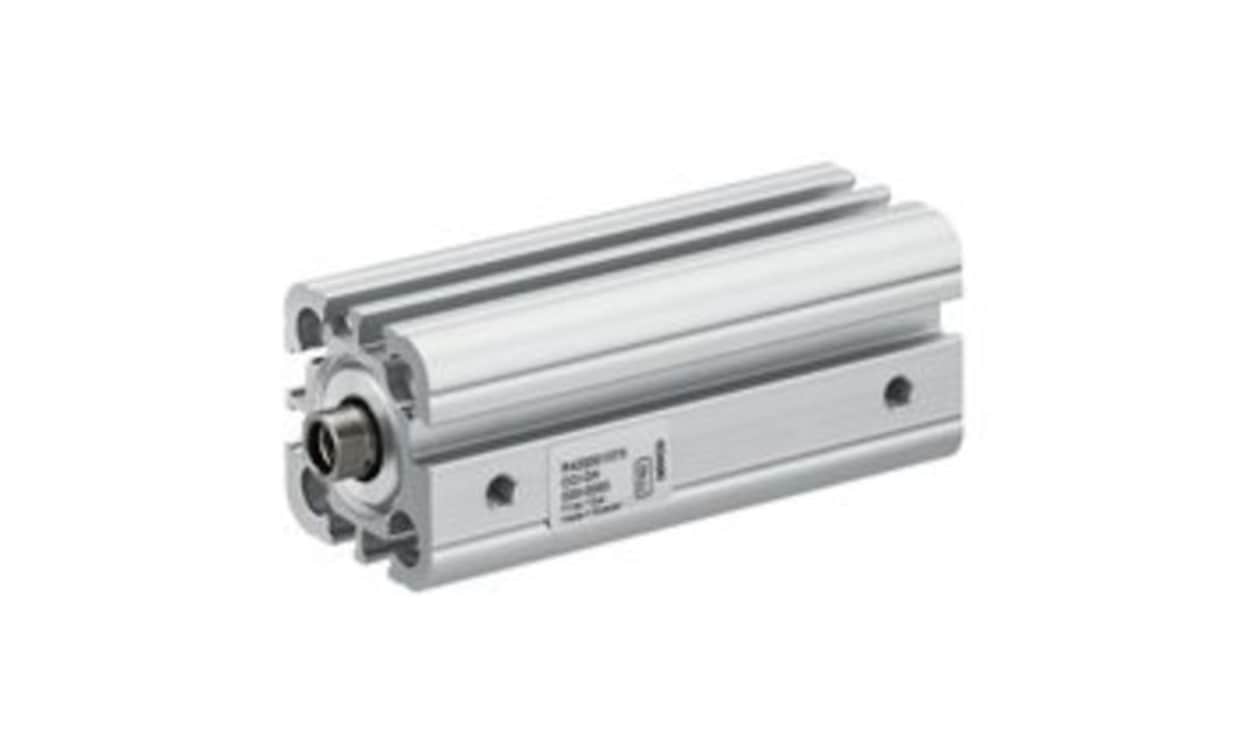

AVENTICS R422001097 Pneumatic Compact Cylinder - , 50mm Bore, 80mm Stroke, CCI Series, Double Acting
- Detailed Description
- Specifications
- Downloads
Double-acting principle contributes to efficient cycle times
Easily cleanable design reduces maintenance efforts
Wide ambient temperature range allows for diverse operational scenarios
Constructed from high-quality materials for extended service life
Piston with magnet supports reliable sensor installation
ATEX certification available for enhanced safety in hazardous locations
Elastic cushioning mechanism minimises impact during operation
Multiple port configurations provide versatile connectivity options
Low oil content requirements help maintain system integrity
| Brand | AVENTICS |
| Manufacturer Series | CCI |
| Model Number p | R422001097 |
| Stroke | 80mm |
| Action | Double |
| Bore | 50mm |
| Pneumatic Connection | G 1/8 |
| Port Connection | G 1/8 |
| Piston Rod Thread Gender | Female |
| Cushioning Type | Elastic |
| Maximum Operating Pressure | 10 bar |
| ISO Standard | ISO 21287 |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +80°C |
