AVENTICS R422001099 Pneumatic Compact Cylinder - , 80mm Bore, 80mm Stroke, CCI Series, Double Acting

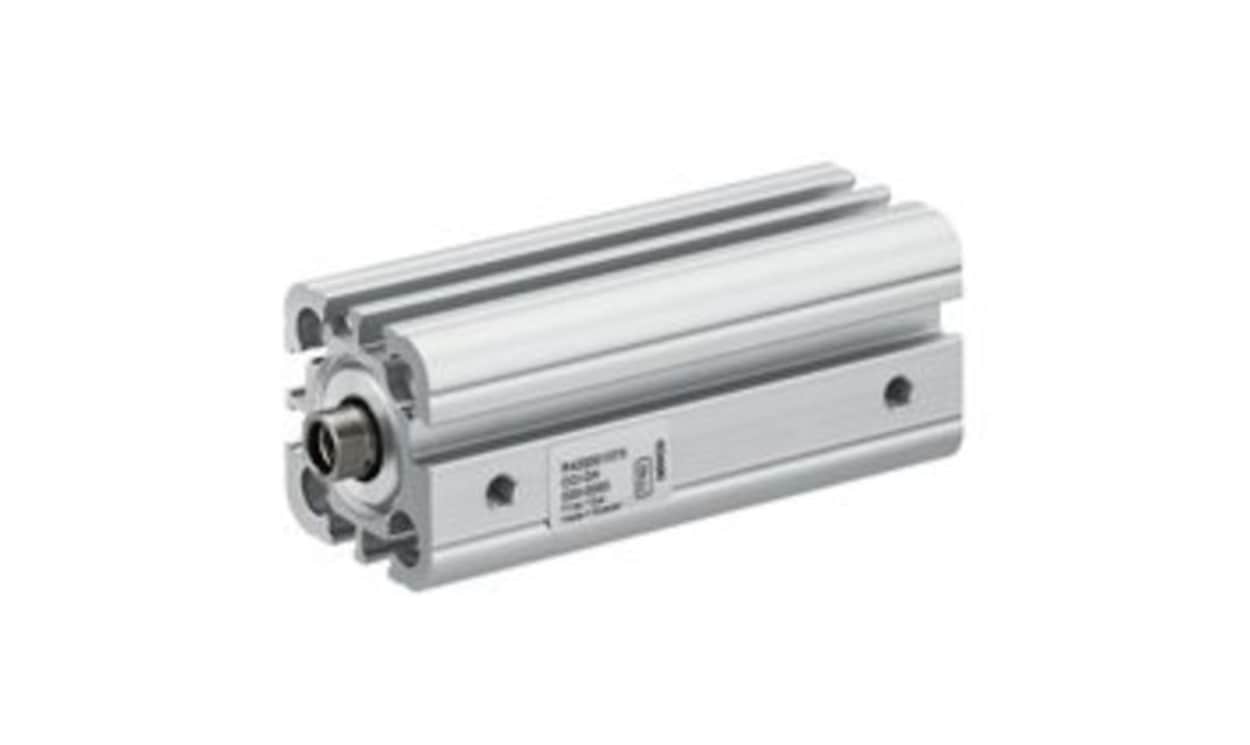

Name: AVENTICS R422001099 Pneumatic Compact Cylinder - , 80mm Bore, 80mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001099
Availability: OutOfStock

Part Number : R422001099

Availability: Sold out

Detailed Description
Specifications

The Aventics compact cylinder from aventics exemplifies cutting-edge design and robust functionality, tailored for efficient operation across industrial applications. Crafted in accordance with ISO 21287, it merges innovative engineering with user-friendly features, making maintenance a breeze. The cylinder's compact construction is ideal for environments requiring both agility and power, accommodating long strokes while optimising cycle times. With easily installable sensors positioned along the entire cylinder length, this model ensures enhanced performance and reliability. It stands out not only with its impressive specifications but also with its ability to adapt to various industrial needs and constraints, ensuring seamless operation under a diverse range of environmental conditions.

Double-acting functional principle promotes efficient motion control
Cylinders are designed for easy cleaning, enhancing operational hygiene
Robust materials ensure long-lasting durability in industrial settings
Environmental compliance ensures reliability in typical working environments
ATEX certification option available for applications in potentially explosive atmospheres
Versatile designing allows for quick attachment of sensors and accessories
Dynamic and static lateral force capabilities ensure adaptability under various loads

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001099
Stroke	80mm
Action	Double
Bore	80mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
