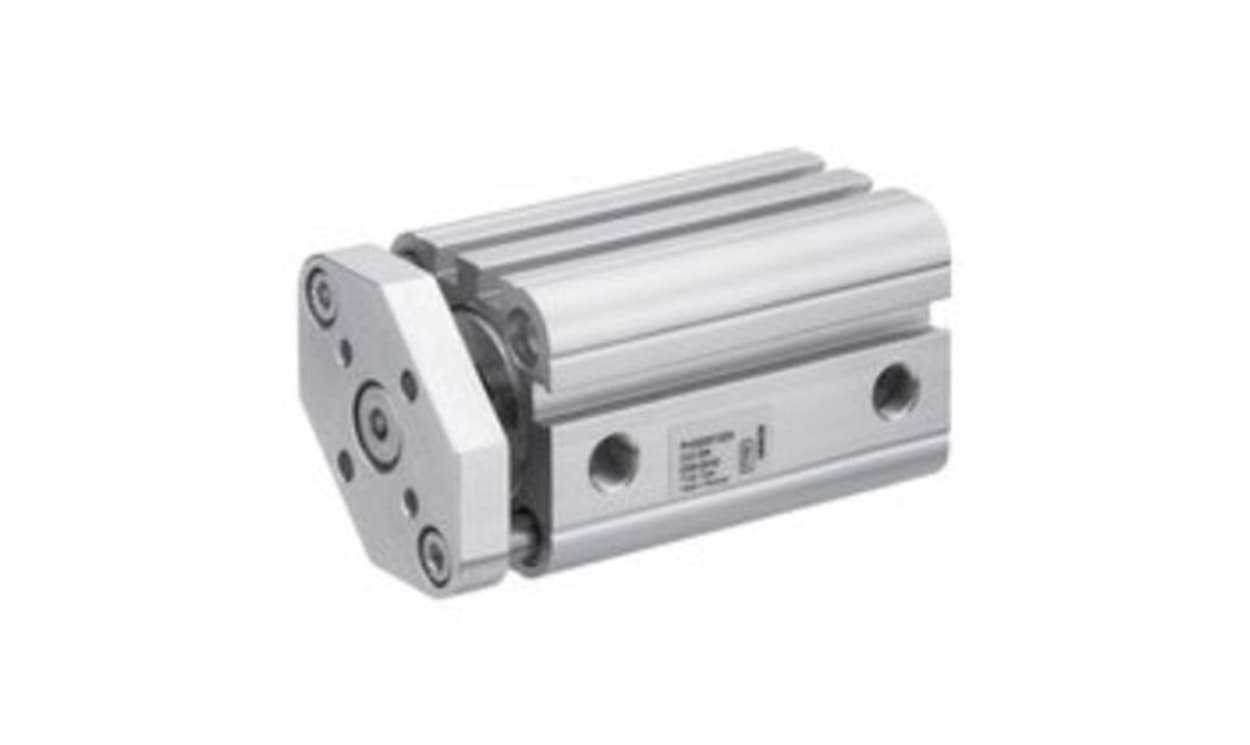

AVENTICS R422001302 Pneumatic Compact Cylinder - , 16mm Bore, 25mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001302 Pneumatic Compact Cylinder - , 16mm Bore, 25mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001302
Availability: OutOfStock

Part Number : R422001302

Availability: Sold out

Detailed Description
Specifications

The Aventics compact cylinder, designed in accordance with ISO 21287, epitomises innovation in pneumatic technology. The Series CCI offers a sleek, easy-to-clean design that is perfectly suited for industrial applications requiring precise motion control. With features that support long strokes and rapid cycle times, this cylinder is engineered to handle demanding operational conditions. Its adaptability is further enhanced by the ability to conveniently mount sensors along the entire length of the cylinder, allowing for customised integration into various systems. Built from durable materials like aluminium and stainless steel, the Series CCI ensures reliability and longevity in challenging environments, making it an indispensable component in any pneumatic system.

Innovative design promotes enhanced cleanliness and maintenance ease
Compatible with a wide range of sensor options for versatile applications
Robust construction materials contribute to prolonged service life
Optimised for dynamic performance in high-demand settings
Elastic cushioning technology enables smooth operation and reduced impact
Internal thread piston rod allows for easy installation and setup
ATEX-certified options ensure safety in explosive environments
Dynamic and static lateral force ratings provide reliable performance under load

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001302
Stroke	25mm
Bore	16mm
Action	Double
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
