AVENTICS R422001309 Pneumatic Compact Cylinder - , 80mm Bore, 25mm Stroke, CCI Series, Double Acting

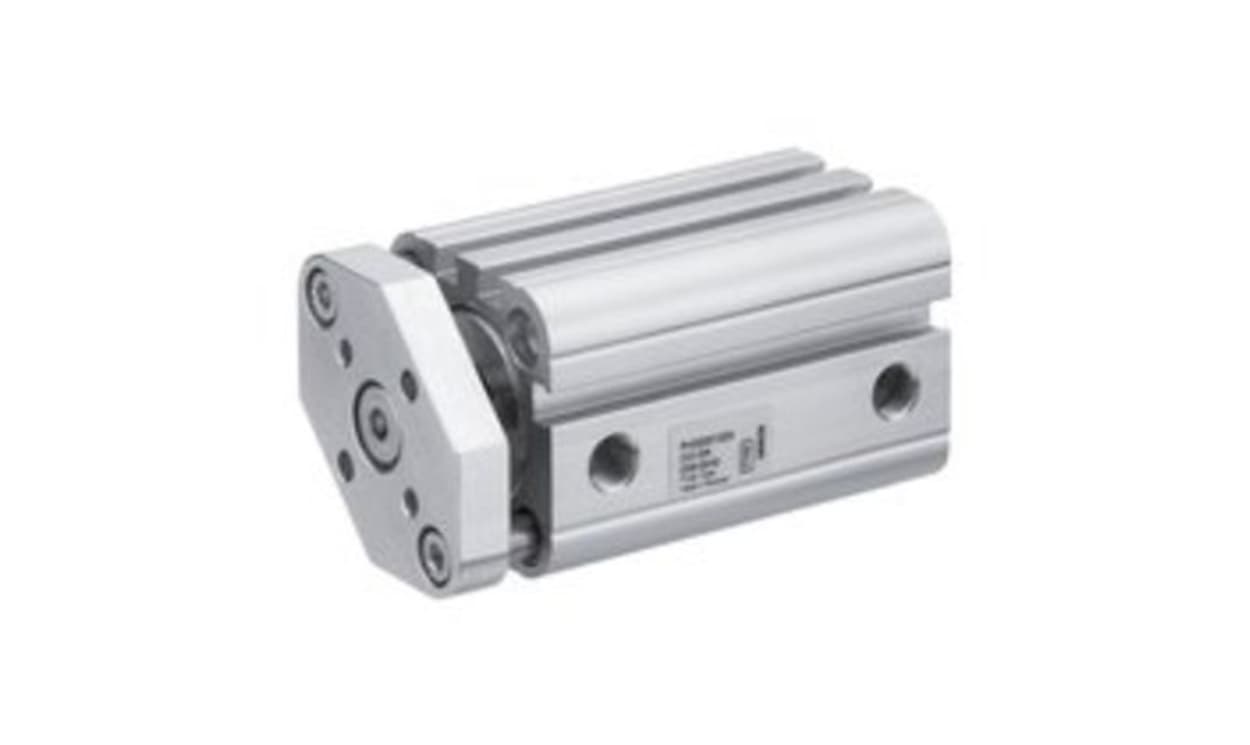

Name: AVENTICS R422001309 Pneumatic Compact Cylinder - , 80mm Bore, 25mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001309
Availability: OutOfStock

Part Number : R422001309

Availability: Sold out

Detailed Description
Specifications

The Aventics Series CCI compact cylinder (ISO 21287) represents a cutting-edge solution crafted for efficiency in space without compromising on performance. Ideal for applications requiring swift operation with long strokes, this compact cylinder boasts an innovative design that simplifies cleaning and maintenance. Its versatility is enhanced by the ability to fit sensors easily along its length, making it adaptable to various environments and operational demands. With robust construction, combining lightweight materials like aluminium and stainless steel, the Series CCI is engineered to withstand standard industrial conditions while optimising cycle times and reducing moving masses. This cylinder is not only a reliable performer but also caters to stringent environmental requirements, offering optional ATEX compliance for hazardous environments. Experience enhanced operational efficiency with a solution that’s built to last.

Designed for innovative and compact construction
Easily cleanable, ensuring low maintenance requirements
Best suited for long strokes, increasing operational efficiency
Sensors can be installed on all sides, enhancing flexibility
Crafted from durable materials that meet industrial standards
Double-acting mechanism for optimal performance
Elastic cushioning provides gentle engagement and reduces wear
Optional ATEX compliance for use in potentially explosive atmospheres
Low and high-temperature operation capability to suit various applications
Integrated non-rotating piston rod enables improved stability

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001309
Action	Double
Bore	80mm
Stroke	25mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
