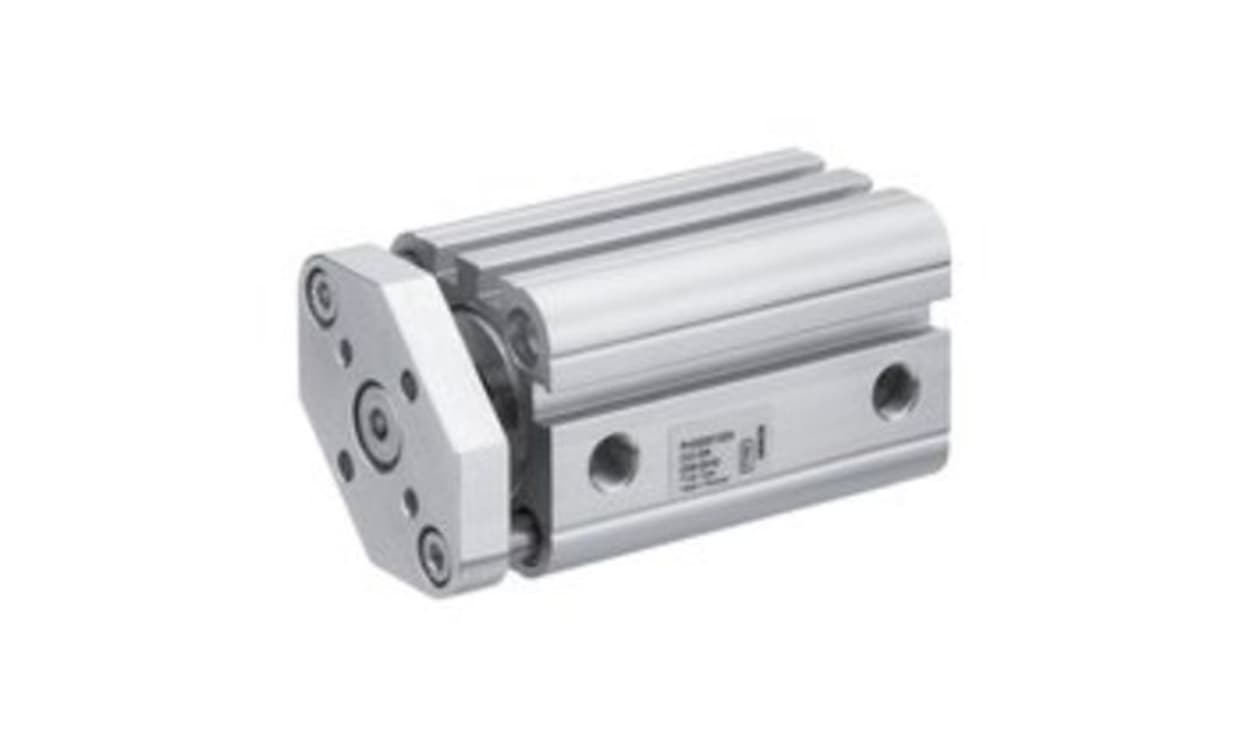

AVENTICS R422001390 Pneumatic Compact Cylinder - , 100mm Bore, 150mm Stroke, CCI Series, Double Acting

Name: AVENTICS R422001390 Pneumatic Compact Cylinder - , 100mm Bore, 150mm Stroke, CCI Series, Double Acting
Brand: Aventics
SKU: R422001390
Availability: OutOfStock

Part Number : R422001390

Availability: Sold out

Detailed Description
Specifications

The Aventics Series CCI compact cylinder is engineered for performance and efficiency, excelling in various industrial applications. With its ISO 21287 compliance, it boasts a sleek design that's easy to clean and maintain. Ideal for extending stroke lengths, this cylinder meets the increasing demands for optimised cycle times and reduced moving masses. Its versatile configuration allows for quick sensor installations on all sides, ensuring adaptability across diverse operational environments. The Series CCI upholds rigorous industry standards, making it a reliable choice for users seeking durability and precision in their pneumatic solutions.

Designed for long strokes and enhanced cycle efficiency
Features a double-acting functional principle for improved performance
Constructed with a robust aluminium body for lightweight durability
Magnetic piston facilitates reliable sensor integration
Equipped with elastic cushioning for smooth operation
Meets extensive environmental requirements, including ATEX options
Offers a broad temperature range for diverse working conditions
Internal thread on the piston rod enables easy installation
Standard industry scraper ensures optimal sealing and performance
Minimal oil content requirements extend the lifespan of the cylinder

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001390
Action	Double
Bore	100mm
Stroke	150mm
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
