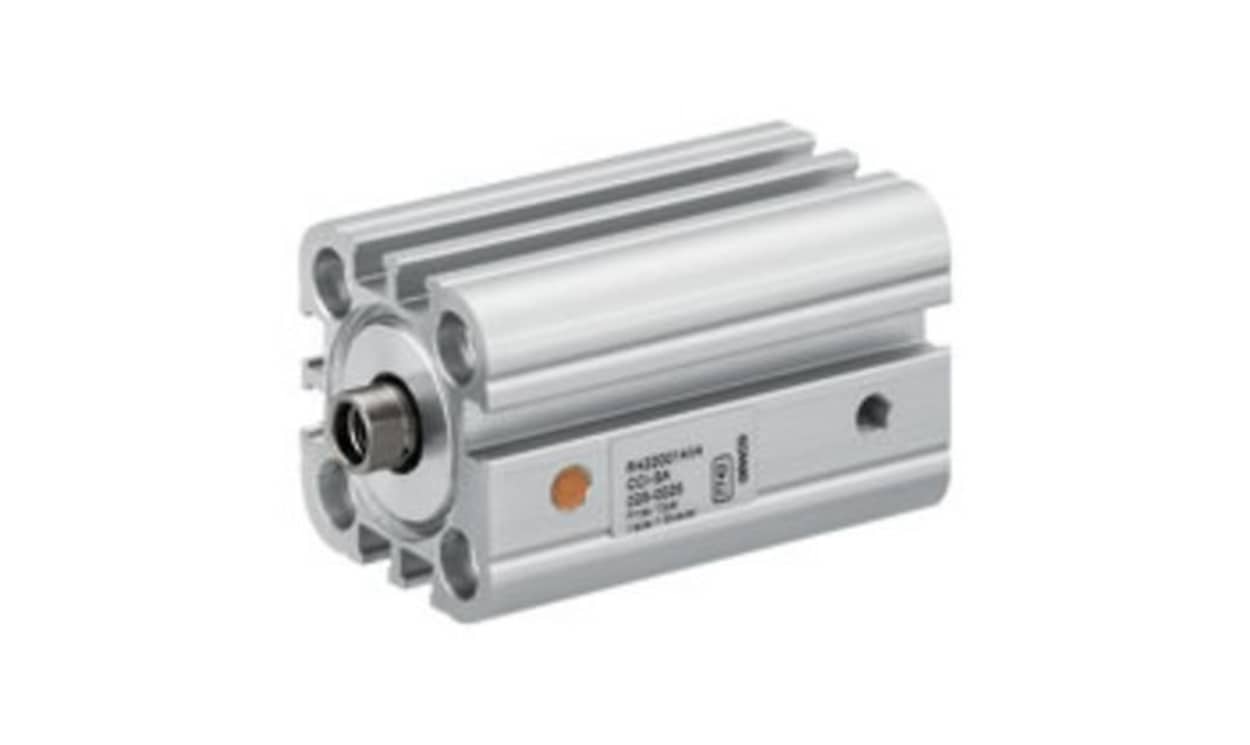

AVENTICS R422001393 | 20 mm Bore, 5 mm Stroke Compact Cylinder | CCI, Single Acting, Female Rod Thread

Name: AVENTICS R422001393 | 20 mm Bore, 5 mm Stroke Compact Cylinder | CCI, Single Acting, Female Rod Thread
Brand: Aventics
SKU: R422001393
Availability: OutOfStock

Part Number : R422001393

The AVENTICS R422001393 compact cylinder delivers 5 mm of travel on a 20 mm bore and is single acting. Air connects through M5 ports on the R422001393, which has a female piston rod thread and elastic cushioning.

Bore x stroke: 20 x 5 mm, single acting
Cushioning on R422001393: elastic
R422001393 rating: up to 10 bar, -20 °C to +80 °C
Standard: ISO 21287 (R422001393)
Piston rod thread of the R422001393: female
Air connection on R422001393: M5

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics CCI series compact cylinder, conforming to ISO 21287 standards, exemplifies innovation through its sleek and space-saving design, perfect for applications demanding efficiency and effectiveness. Engineered for long strokes and optimised cycle times, this cylinder effortlessly caters to high-performance requirements. Its easy-to-clean architecture not only enhances hygiene but also simplifies upkeep for industrial settings. Featuring a quick and versatile sensor installation, the CCI series ensures maximum adaptability across a variety of configurations. With robust material choices and stringent adherence to environmental standards, this compact cylinder provides both reliability and precision in operation.

Offers a streamlined, compact design for constrained spaces
Facilitates easy sensor installation for flexible operation
Designed for optimal performance under high stroke requirements
Crafted from durable materials, ensuring longevity and resilience
Meets stringent environmental standards for varied industrial applications
Delivers consistent power and efficiency for improved cycle times
Features both elastic cushioning and a magnetic piston for smooth functionality

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001393
Action	Single
Stroke	5mm
Bore	20mm
Port Connection	M5
Pneumatic Connection	M5
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R422001393 | 20 mm Bore, 5 mm Stroke Compact Cylinder | CCI, Single Acting, Female Rod Thread

DOWNLOAD CATALOG

R422001393 Datasheet - R422001393 A700000012577380

R422001393 Datasheet - R422001393 A700000012580939
