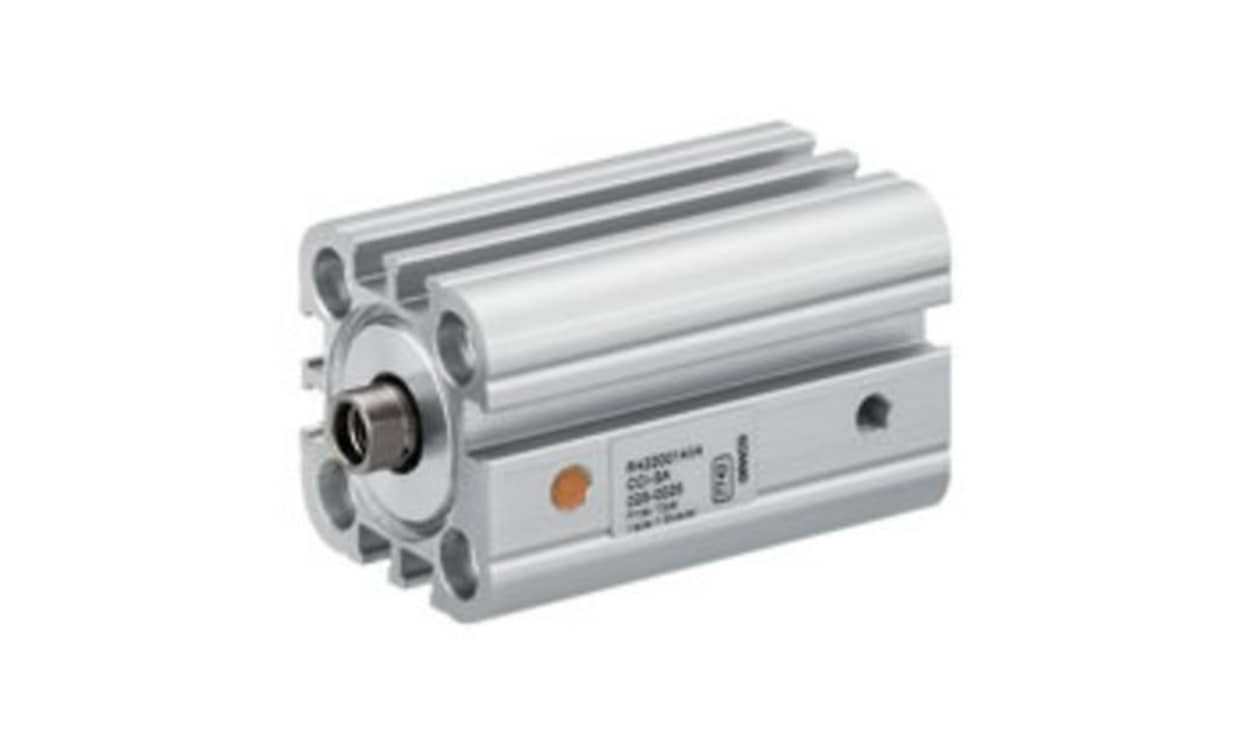

AVENTICS R422001406 Pneumatic Compact Cylinder - , 40mm Bore, 10mm Stroke, CCI Series, Single Acting

Name: AVENTICS R422001406 Pneumatic Compact Cylinder - , 40mm Bore, 10mm Stroke, CCI Series, Single Acting
Brand: Aventics
SKU: R422001406
Availability: OutOfStock

Part Number : R422001406

Availability: Sold out

Detailed Description
Specifications

The Aventics Compact Cylinder from the series CCI is engineered to deliver outstanding performance and efficiency in various industrial applications. Built to ISO 21287 standards, it boasts a robust design focusing on cleanliness and ease of maintenance, making it suitable for environments where hygiene and reliability are paramount. Its innovative engineering supports long strokes while optimising cycle times, ensuring high efficiency with moving masses. The versatile product design allows for easy installation of sensors along the entire length of the cylinder, enhancing operational flexibility.

Features elastic cushioning for gentle operation
Robust materials enhance durability and longevity
Complies with industry standards for reliable performance
Low maintenance design minimises downtime

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001406
Bore	40mm
Stroke	10mm
Action	Single
Pneumatic Connection	G 1/8
Port Connection	G 1/8
Piston Rod Thread Gender	Female
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
