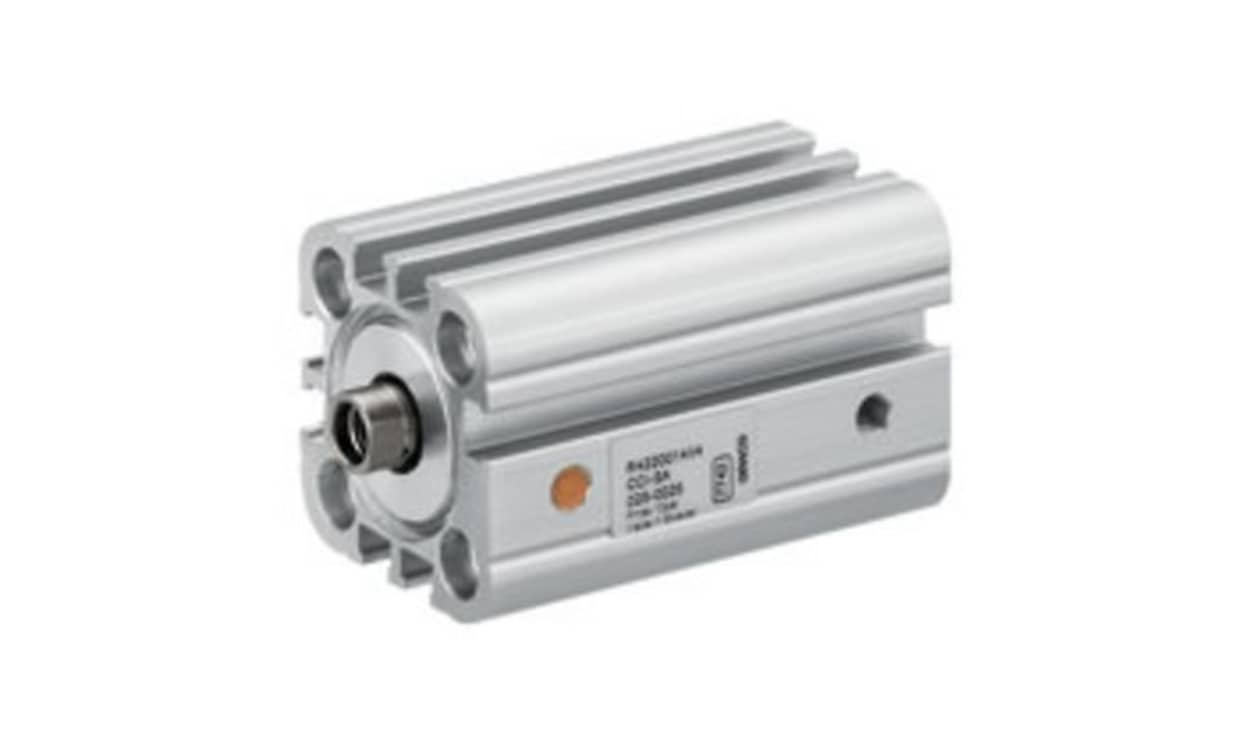

AVENTICS R422001454 | 25 mm Bore, 10 mm Stroke Compact Cylinder | CCI, Single Acting, Male Rod Thread

Name: AVENTICS R422001454 | 25 mm Bore, 10 mm Stroke Compact Cylinder | CCI, Single Acting, Male Rod Thread
Brand: Aventics
SKU: R422001454
Availability: OutOfStock

Part Number : R422001454

For a 25 x 10 mm (bore x stroke) application, AVENTICS R422001454 is a single-acting cylinder from the CCI compact series. The 25/10 mm R422001454 has M5 air ports, a male piston rod thread and elastic cushioning, and is rated to 10 bar.

Bore x stroke of the R422001454: 25 x 10 mm, single acting
Piston rod thread on R422001454: male
R422001454 air connection: M5
Cushioning: elastic (R422001454)
Rating of the R422001454: up to 10 bar, -20 °C to +80 °C
Standard on R422001454: ISO 21287

Availability: in stock

Detailed Description
Specifications
Downloads

The Aventics compact cylinder from the series CCI is engineered to meet the demands of modern industrial applications, offering unmatched efficiency and simplicity in operation. Designed in accordance with ISO 21287 standards, it boasts a sleek and innovative structure that ensures easy cleaning and maintenance. The Series CCI compact cylinders are particularly well-suited for long strokes, optimised cycle times, and managing moving masses effectively. The incorporation of magnetic pistons allows for hassle-free sensor installation, delivering flexibility across various operational setups. This product exemplifies a perfect blend of durability and performance, making it a reliable choice for environments where precision and efficiency are paramount. Equipped with features that cater to a wide range of ambient conditions, the Series CCI ensures performance without compromise, standing out as an essential tool for any industrial setup.

Innovative design enhances ease of cleaning and maintenance
Optimised for long strokes and quick cycle times, improving productivity
Magnetic piston facilitates quick sensor installations on all sides
Durable materials ensure longevity and reliability under strenuous conditions
Single-acting functional principle simplifies operation and reduces complexity
Wide operational temperature range supports diverse industrial environments
Compact dimensions make it easy to integrate into existing systems
Elastic cushioning provides smooth operation and protects against wear

Brand	AVENTICS
Manufacturer Series	CCI
Model Number p	R422001454
Stroke	10mm
Action	Single
Bore	25mm
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	ISO 21287
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C

AVENTICS R422001454 | 25 mm Bore, 10 mm Stroke Compact Cylinder | CCI, Single Acting, Male Rod Thread

DOWNLOAD CATALOG

R422001454 Datasheet - R422001454 A700000012575828

R422001454 Datasheet - R422001454 A700000012581584
