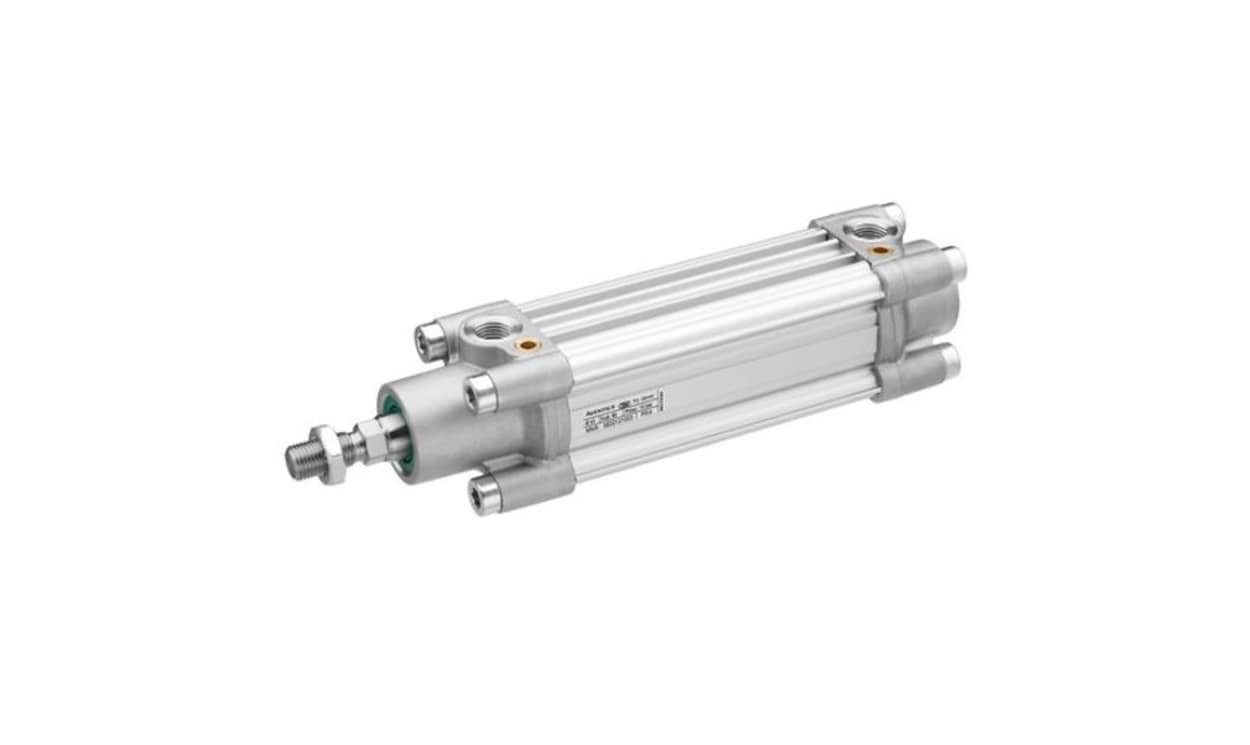

AVENTICS R480041560 ISO Standard Cylinder - , 40mm Bore, 50mm Stroke, PRA Series, Double Acting

Name: AVENTICS R480041560 ISO Standard Cylinder - , 40mm Bore, 50mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R480041560
Availability: OutOfStock

Part Number : R480041560

Availability: Sold out

Detailed Description
Specifications

The Aventics profile cylinder from the PRA series is engineered to meet the rigorous demands of various industrial applications, boasting a compact design that incorporates integrated sensor slots. Developed in accordance with ISO 15552 standards, this cylinder provides exceptional versatility for use in automation technology, machine and systems construction, and tailored industry applications. Its robust construction and double-acting functional principle ensure reliable performance under diverse working conditions, with the capacity to operate efficiently at both high and low pressures. The PRA series optimises space while maintaining exceptional durability, making it an ideal choice for environments requiring precise control and adaptability.

Compact design facilitates integration in space-constrained environments
Integrated sensor slots allow for easy installation and enhanced performance tracking
Double-acting functionality ensures consistent force delivery in both directions
Wide operating pressure range supports various application requirements
High-quality materials enhance longevity and reduce maintenance needs
Environmentally resilient design withstands a broad temperature spectrum
Elastic cushioning provides gentle and safe operation, minimising impact
Comprehensive support and guidance available for optimal performance

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R480041560
Action	Double
Stroke	50mm
Bore	40mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Elastic
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
