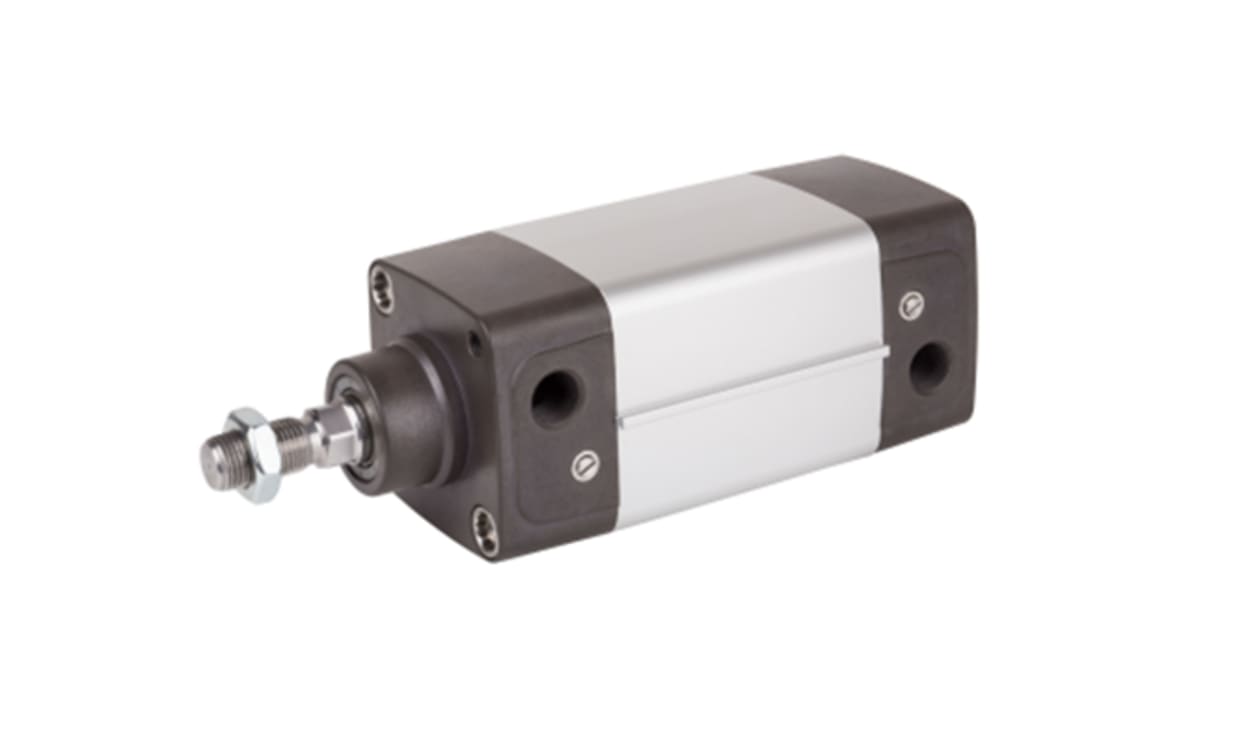

AVENTICS R480059529 Pneumatic Piston Rod Cylinder - , 40mm Bore, 400mm Stroke, CCL-IS Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R480059529 Pneumatic Piston Rod Cylinder - , 40mm Bore, 400mm Stroke, CCL-IS Series, Double Acting

Name: AVENTICS R480059529 Pneumatic Piston Rod Cylinder - , 40mm Bore, 400mm Stroke, CCL-IS Series, Double Acting
Brand: Aventics
SKU: R480059529
Availability: OutOfStock

Part Number : R480059529

Availability: Sold out

Detailed Description
Specifications

The Aventics CCL-IS Series Cylinders complement the PRA series in the area of hygienic design and meet all requirements for use in the food sector. A special feature is the option to configure the air connections for supply and exhaust on just the base, which increases flexibility when designing the system's tubing concept.

Easy to clean anodized surfaces
Scrapers and lubricants are approved for food applications
Hygienic protective caps for unused mounting holes
Selection from elastic or pneumatic cushioning possible

Brand	AVENTICS
Manufacturer Series	CCL-IS
Model Number p	R480059529
Bore	40mm
Stroke	400mm
Action	Double
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
