AVENTICS R480060008 Pneumatic Piston Rod Cylinder - , 32mm Bore, 160mm Stroke, CCL-IS Series, Double Acting

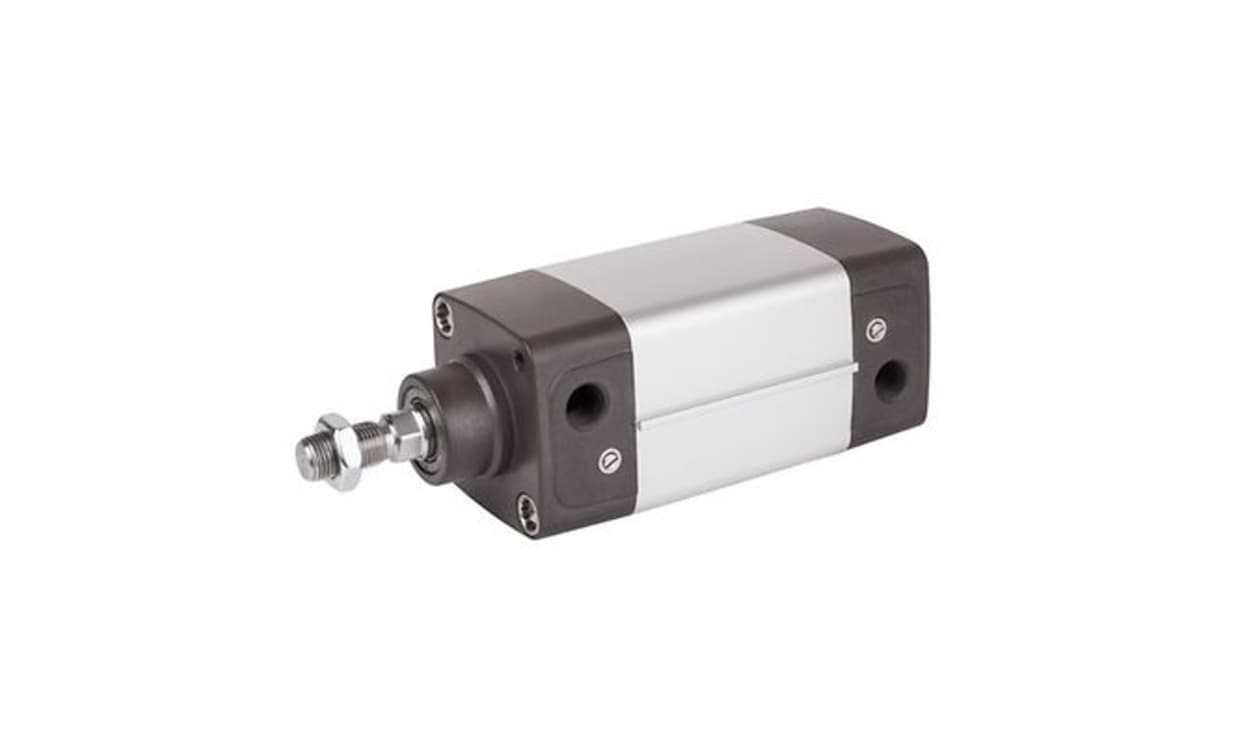

Name: AVENTICS R480060008 Pneumatic Piston Rod Cylinder - , 32mm Bore, 160mm Stroke, CCL-IS Series, Double Acting
Brand: Aventics
SKU: R480060008
Availability: OutOfStock

Part Number : R480060008

Availability: Sold out

Detailed Description
Specifications

The Aventics Cylinders complement the PRA series with a hygienic design meeting food sector requirements. They feature configurable air connections for supply and exhaust on the base for greater tubing flexibility.

Stainless steel piston rod
Polyester scraper
Stainless steel tie rod
Aluminium front cover

Brand	AVENTICS
Manufacturer Series	CCL-IS
Model Number p	R480060008
Action	Double
Bore	32mm
Stroke	160mm
Port Connection	G 1/8
Pneumatic Connection	G 1/8
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
