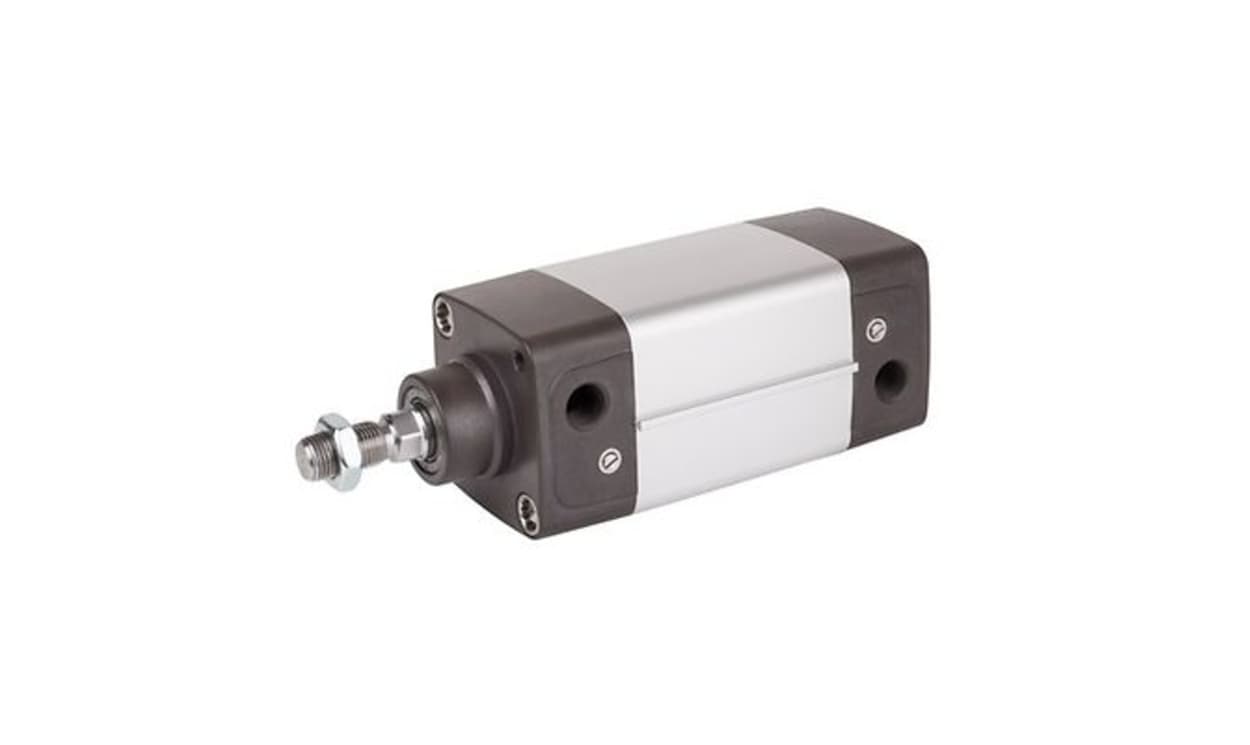

AVENTICS R480060018 Pneumatic Piston Rod Cylinder - , 40mm Bore, 25mm Stroke, CCL-IS Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R480060018 Pneumatic Piston Rod Cylinder - , 40mm Bore, 25mm Stroke, CCL-IS Series, Double Acting

Name: AVENTICS R480060018 Pneumatic Piston Rod Cylinder - , 40mm Bore, 25mm Stroke, CCL-IS Series, Double Acting
Brand: Aventics
SKU: R480060018
Availability: OutOfStock

Part Number : R480060018

Availability: Sold out

Detailed Description
Specifications

The Aventics Cylinders complement the PRA series in the area of hygienic design and meet all requirements for use in the food sector. A special feature is the option to configure the air connections for supply and exhaust on just the base, which increases flexibility when designing the system's tubing concept.

Stainless steel piston rod
Polyester scraper
Stainless steel tie rod
Aluminium front cover

Brand	AVENTICS
Manufacturer Series	CCL-IS
Model Number p	R480060018
Action	Double
Stroke	25mm
Bore	40mm
Pneumatic Connection	G 1/4
Port Connection	G 1/4
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
