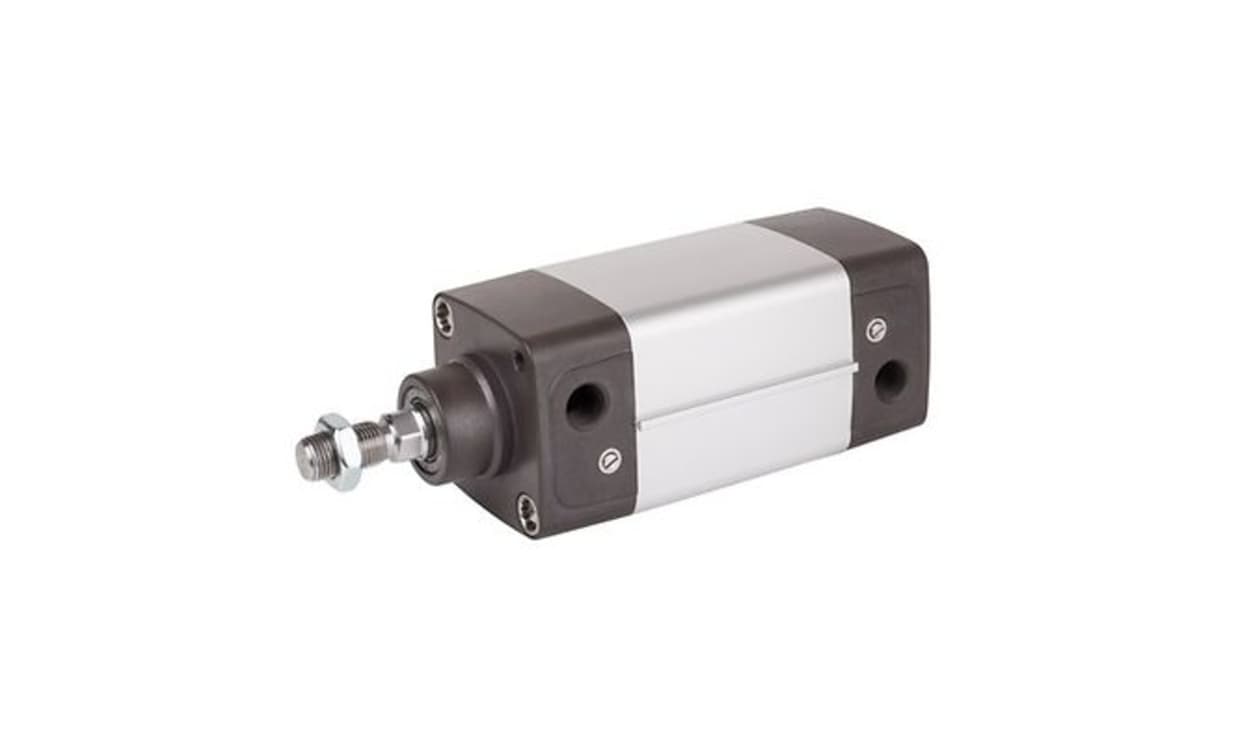

AVENTICS R480060081 ISO Standard Cylinder - , 125mm Bore, 50mm Stroke, CCL-IS Series, Double Acting

Name: AVENTICS R480060081 ISO Standard Cylinder - , 125mm Bore, 50mm Stroke, CCL-IS Series, Double Acting
Brand: Aventics
SKU: R480060081
Availability: OutOfStock

Part Number : R480060081

Availability: Sold out

Detailed Description
Specifications

The Aventics CCL-IS series cylinders represent a pinnacle of hygienic design, meticulously crafted to meet the rigorous demands of the food processing industry. With their ISO 15552 compatibility, these cylinders offer unparalleled flexibility by allowing the customisation of air connections directly on the base. This innovation facilitates a streamlined tubing layout, essential for maintaining cleanliness and efficiency in operational environments. The series integrates optional enhancements such as through piston rods, dry-run scrapers, and robust heat-resistant features, ensuring optimal performance even under challenging conditions. Each unit is engineered for double-acting functionality, fortified with pneumatic adjustable cushioning to deliver smooth and precise operation. Hillockal in high corrosion environments, these cylinders are designed to withstand the rigours of various industrial settings, ensuring longevity and reliability.

Hygienic design tailored for food processing applications
Customisable air connections enhance system flexibility
Double-acting operation ensures efficient performance
Pneumatic adjustable cushioning provides smooth motion
Constructed to resist high corrosion environments
Options for greater adaptability with specialised components
Engineered to meet strict industry standards for reliability
Suitable for high-temperature and low-temperature applications

Brand	AVENTICS
Manufacturer Series	CCL-IS
Model Number p	R480060081
Action	Double
Stroke	50mm
Bore	125mm
Port Connection	G 1/2
Pneumatic Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
