AVENTICS R480140455 ISO Standard Cylinder - , 125mm Bore, 50mm Stroke, PRA Series, Double Acting

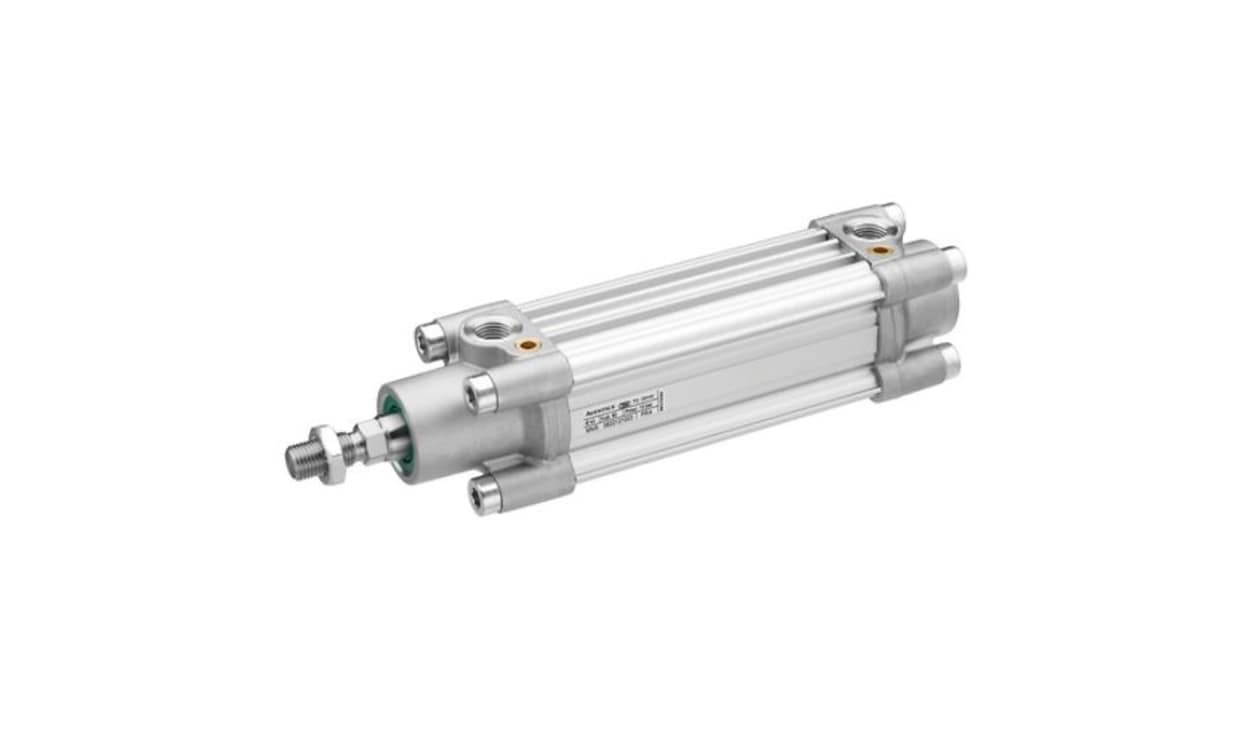

Name: AVENTICS R480140455 ISO Standard Cylinder - , 125mm Bore, 50mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R480140455
Availability: OutOfStock

Part Number : R480140455

Availability: Sold out

Detailed Description
Specifications

The Aventics Series PRA Profile cylinder ISO 15552 stands as a testament to cutting-edge engineering designed for versatility across diverse industries. This robust cylinder features a compact design, seamlessly integrating sensor slots for enhanced automation capabilities. Perfectly suited for general automation technology and machine systems construction, it ensures reliable performance under a variety of conditions. Its double-acting functional principle, alongside pneumatic adjustable cushioning, allows for smooth operation and adaptable cushioning energy. The Series PRA is built to excel within the demanding environments typical of industrial applications, while also being ATEX optional, catering to specific requirements. With the ability to support a substantial pushing power, this cylinder promises not only performance but also durability that meets the highest industry standards.

Features integrated sensor slots for enhanced functionality
Constructed with high-quality materials for longevity
Double-acting operation improves efficiency and performance
Adjustable cushioning allows for tailored use in various applications
Compatible with ATEX standards for safe use in potentially explosive environments
Offers an extensive operating temperature range for versatile deployment
Designed for minimal maintenance to support continuous operation
Lightweight design enhances ease of installation and handling

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R480140455
Stroke	50mm
Bore	125mm
Action	Double
Port Connection	G 1/2
Pneumatic Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
