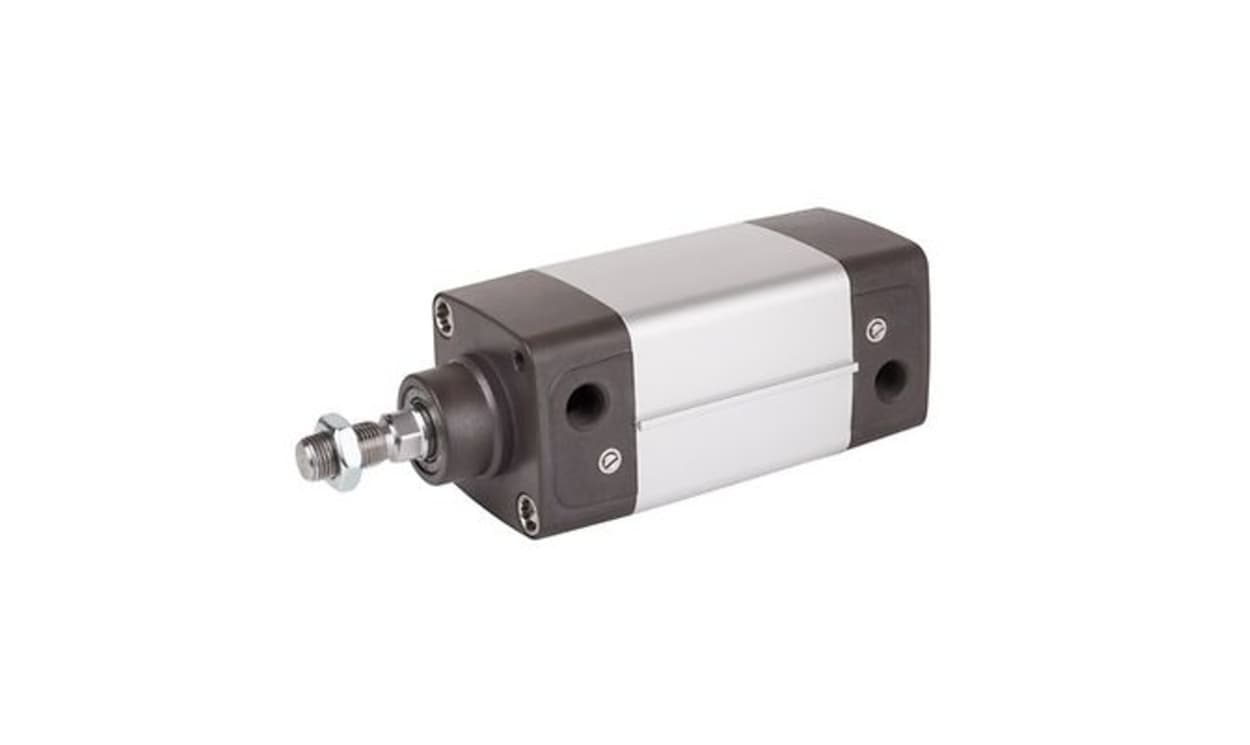

AVENTICS R480140649 ISO Standard Cylinder - , 125mm Bore, 320mm Stroke, CCL-IS Series, Double Acting

Name: AVENTICS R480140649 ISO Standard Cylinder - , 125mm Bore, 320mm Stroke, CCL-IS Series, Double Acting
Brand: Aventics
SKU: R480140649
Availability: OutOfStock

Part Number : R480140649

Availability: Sold out

Detailed Description
Specifications

The Aventics cutting-edge cylinder, part of the ISO 15552 series CCL-IS, epitomises hygienic design tailored for the food sector. Engineered with versatility in mind, it boasts configurable air connections at the base, promoting flexible tubing configurations. The double-acting functionality, complemented by adjustable pneumatic cushioning, guarantees smooth operation across a variety of applications. With a magnetic piston and robust materials, including stainless steel and aluminium, this cylinder ensures reliability and longevity even in challenging environments. Its suitability for food processing industries, along with options for ATEX certification, highlights its dedication to safety and performance under strict conditions. Whether in standard or customised setups, it stands as a testament to innovation and precision engineering in pneumatic solutions.

Designed specifically to meet the rigorous standards of the food processing industry
Offers a broad range of optional features for customised solutions
Magnetic piston enhances responsiveness and control during operation
Pneumatic cushioning adjustable for optimised performance and safety
Constructed from high-quality materials for resilience against corrosion
Temperature tolerance from -20 °C to 80 °C, ensuring versatility in usage
Lightweight design facilitates easy installation and reduces wear on supporting structures
Flexible air connection configuration supports diverse system designs
ATEX certification option available for use in explosive atmospheres
Reliable performance at working pressures between 1
5 to 10 bar

Brand	AVENTICS
Manufacturer Series	CCL-IS
Model Number p	R480140649
Stroke	320mm
Bore	125mm
Action	Double
Port Connection	G 1/2
Pneumatic Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
