AVENTICS R480141373 ISO Standard Cylinder - , 125mm Bore, 400mm Stroke, PRA Series, Double Acting

Name: AVENTICS R480141373 ISO Standard Cylinder - , 125mm Bore, 400mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R480141373
Availability: OutOfStock

Part Number : R480141373

Availability: Sold out

Detailed Description
Specifications

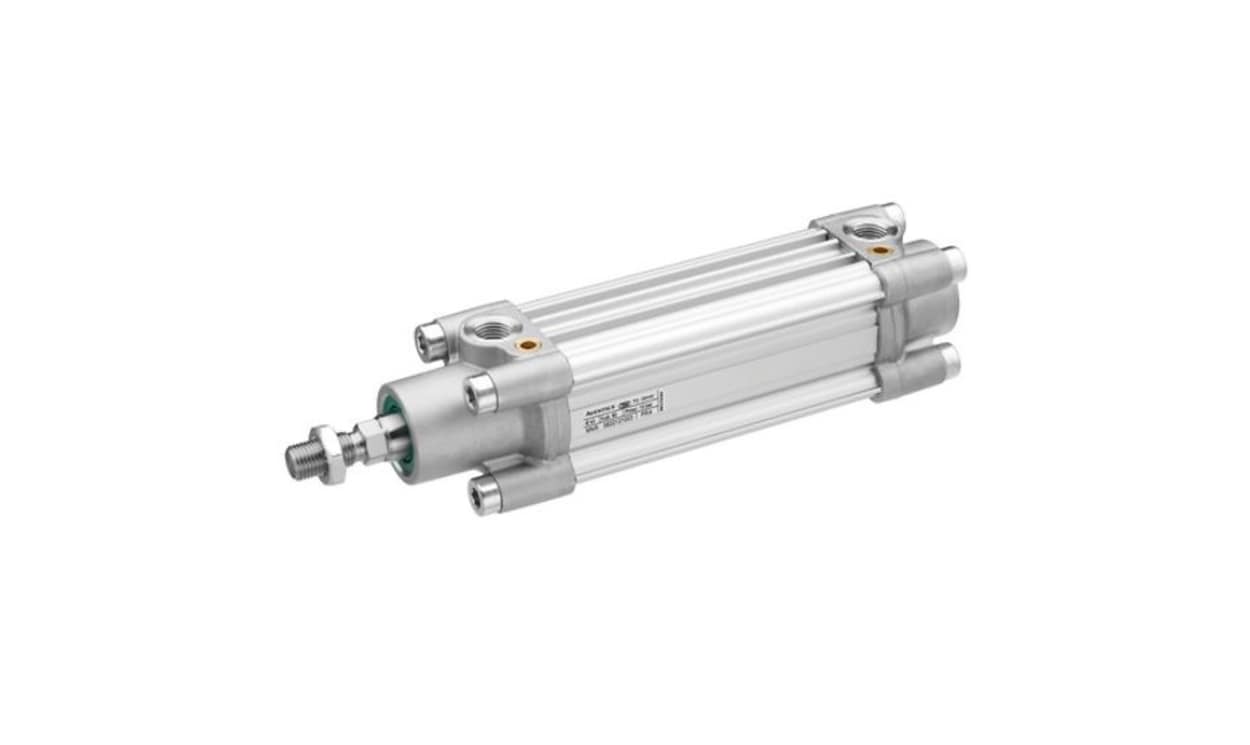

The Aventics SERIES PRA profile cylinder (ISO 15552) exemplifies a perfect blend of compact design and robust functionality, making it suitable for diverse industrial applications. Engineered for reliability, this double-acting cylinder integrates sensor slots to enhance its adaptability across various automation scenarios. With a variety of stroke lengths available, it caters to specific needs within general automation technology and machine construction. Its rugged construction, featuring materials like stainless steel and die-cast aluminium, ensures longevity in demanding environments. The SERIES PRA is compliant with ISO standards, ensuring it meets the rigorous requirements of modern industrial environments while optimising performance and safety. Additionally, optional ATEX certification widens its application potential in explosive atmospheres. Discover how the SERIES PRA can elevate your operational efficiency.

Designed for both general automation technology and specific industry applications
Features integrated sensor slots for enhanced configurability
Robust construction ensures longevity and reliability in demanding environments
Optional ATEX certification available for use in potentially explosive atmospheres
Complies with ISO 15552 standards for assurance of quality and performance
Double-acting functional principle provides efficient operation and control
Pneumatic adjustable cushioning allows for precise movement and impact absorption
Wide temperature range accommodates various working conditions

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R480141373
Action	Double
Bore	125mm
Stroke	400mm
Pneumatic Connection	G 1/2
Port Connection	G 1/2
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
