AVENTICS R480651405 Roundline Cylinder - , 16mm Bore, 200mm Stroke, CSL-RD Series, Double Acting

Name: AVENTICS R480651405 Roundline Cylinder - , 16mm Bore, 200mm Stroke, CSL-RD Series, Double Acting
Brand: Aventics
SKU: R480651405
Availability: OutOfStock

Part Number : R480651405

Availability: Sold out

Detailed Description
Specifications

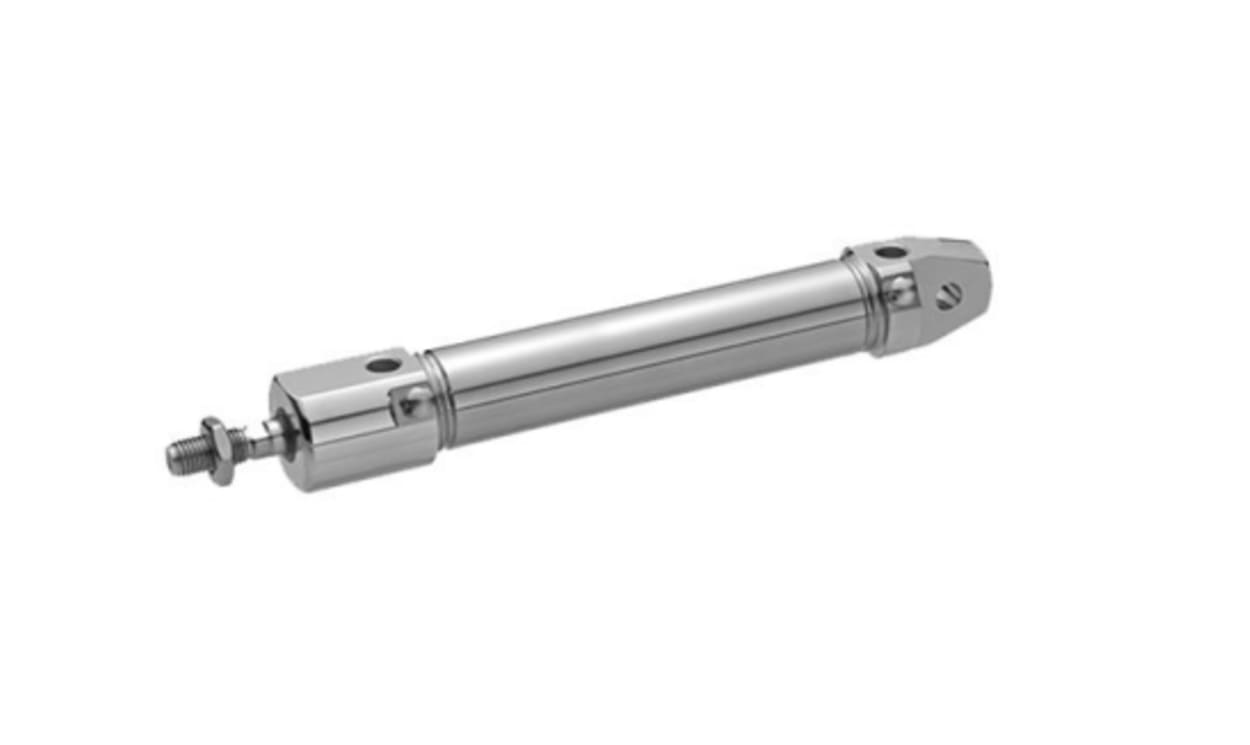

The Aventics CSL-RD Series Cylinder is a stainless steel round cylinder, configurable in three different designs such as standard, hygienic and short. The Series CSL-RD has a smooth profile and low surface roughness made of stainless steel, NSF-H1 grease and FDA compliant seals. The undercut free scrapers prevent the accumulation of dirt and dead space around the piston rod.

Clean and compact design
Guaranteed food safety
Resistant to chemicals

Brand	AVENTICS
Manufacturer Series	CSL-RD
Model Number p	R480651405
Bore	16mm
Stroke	200mm
Action	Double
Pneumatic Connection	M5
Port Connection	M5
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Adjustable
Maximum Operating Pressure	10 bar
ISO Standard	ISO 6432
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
