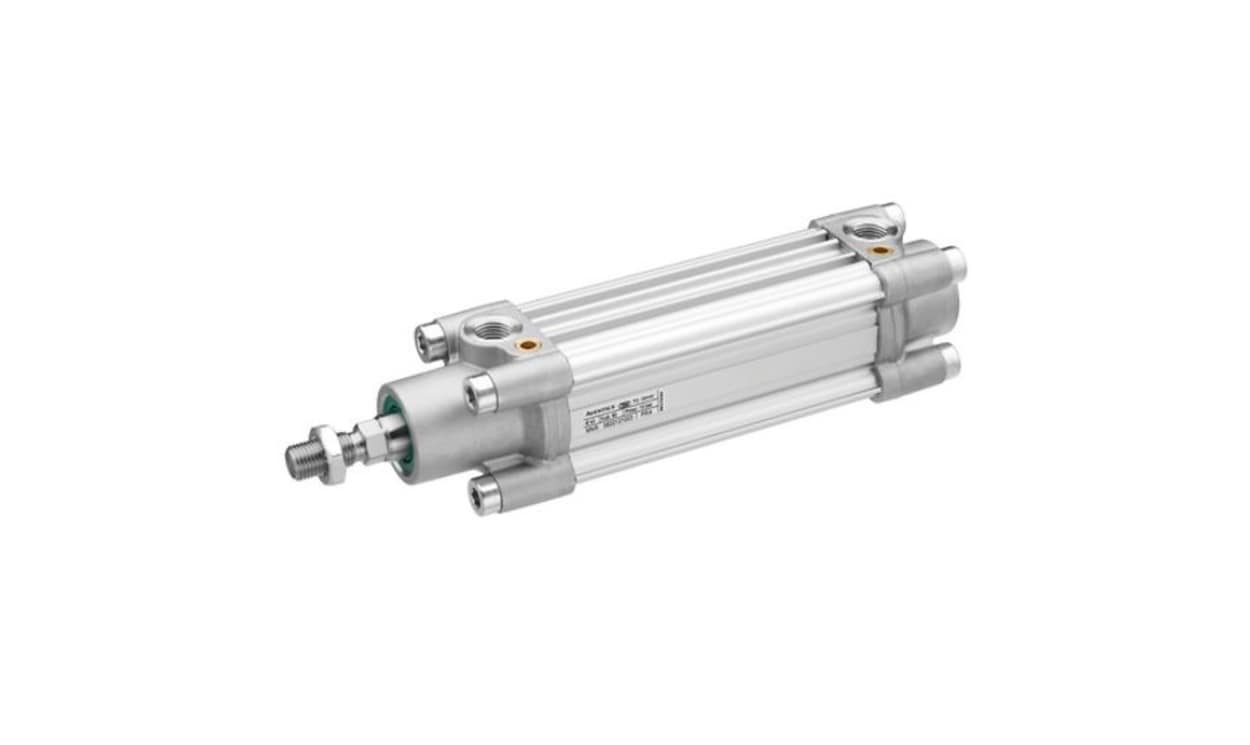

AVENTICS R480692017 ISO Standard Cylinder - , 63mm Bore, 400mm Stroke, PRA Series, Double Acting

Client Protection

Dedicated Support

Client Protection

Dedicated Support

AVENTICS R480692017 ISO Standard Cylinder - , 63mm Bore, 400mm Stroke, PRA Series, Double Acting

Name: AVENTICS R480692017 ISO Standard Cylinder - , 63mm Bore, 400mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R480692017
Availability: OutOfStock

Part Number : R480692017

Availability: Sold out

Detailed Description
Specifications

The Aventics Series PRA profile cylinder, designed to the ISO 15552 standard, melds compact functionality with exceptional versatility. Crafted specifically for diverse industrial applications, it boasts integrated sensor slots that enhance its adaptability within various automation settings. With its robust construction and a range of environmental tolerances, this cylinder excels in challenging conditions, ensuring reliability across industries like machine construction and systems design. Featuring both pneumatic adjustable cushioning and a double-acting functional principle, the Series PRA is engineered to accommodate differing operational needs while maintaining efficient performance. The inclusion of a magnetic piston further elevates its capabilities, making it a go-to choice for precision tasks and applications demanding consistent results.

Compact design reduces space without compromising performance
Integrated sensor slots facilitate easy customization for varied applications
Rugged construction ensures durability in demanding environments
Pneumatic adjustable cushioning provides enhanced control and comfort
Double-acting functionality allows for versatile operation
Magnetic piston design supports effective detection and positioning
Wide temperature range accommodates various working conditions
Low oil content requirement ensures compatibility with diverse setups
Designed to meet industry standards, enhancing operational reliability

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R480692017
Action	Double
Bore	63mm
Stroke	400mm
Pneumatic Connection	G 3/8
Port Connection	G 3/8
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
