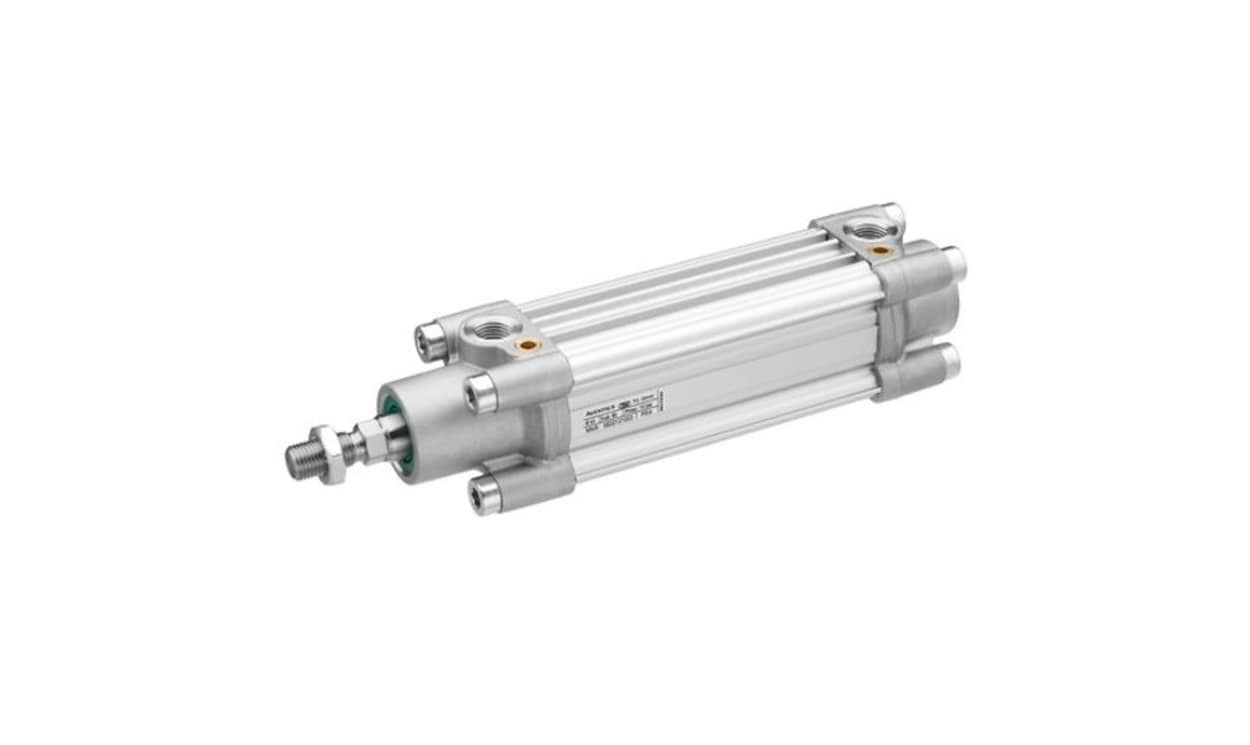

AVENTICS R481601986 ISO Standard Cylinder - , 40mm Bore, 200mm Stroke, PRA Series, Double Acting

Name: AVENTICS R481601986 ISO Standard Cylinder - , 40mm Bore, 200mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R481601986
Availability: OutOfStock

Part Number : R481601986

Availability: Sold out

Detailed Description
Specifications

The Aventics profile cylinder from aventics is designed to meet the rigorous demands of industrial automation and systems construction. With a proven ISO 15552 profile, it offers a compact design with integrated sensor slots, optimising installation space without compromising on functionality. The cylinder's double-acting functional principle ensures reliable operation under various load conditions, making it suitable for diverse industrial applications. Built for performance and durability, it features pneumatic adjustable cushioning and is ATEX-certified, meaning it can be safely employed in explosive environments. With a broad operating temperature range and rugged construction, this cylinder is engineered to withstand the challenges of everyday use while maintaining high efficiency and responsiveness in automation processes.

Integrated sensor slots enhance flexibility during installation
Pneumatic adjustable cushioning provides smooth operation and reduces impact
Designed to withstand a wide temperature range for versatile application
Double-acting functionality ensures consistent performance under varying loads
ATEX certification allows for use in hazardous environments
Compact design optimises space without sacrificing strength or reliability
Constructed with high-quality materials to prolong service life
Effective particle filtration maintains operation integrity over time

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R481601986
Action	Double
Stroke	200mm
Bore	40mm
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Maximum Operating Temperature	+80°C
Minimum Operating Temperature	-20°C
