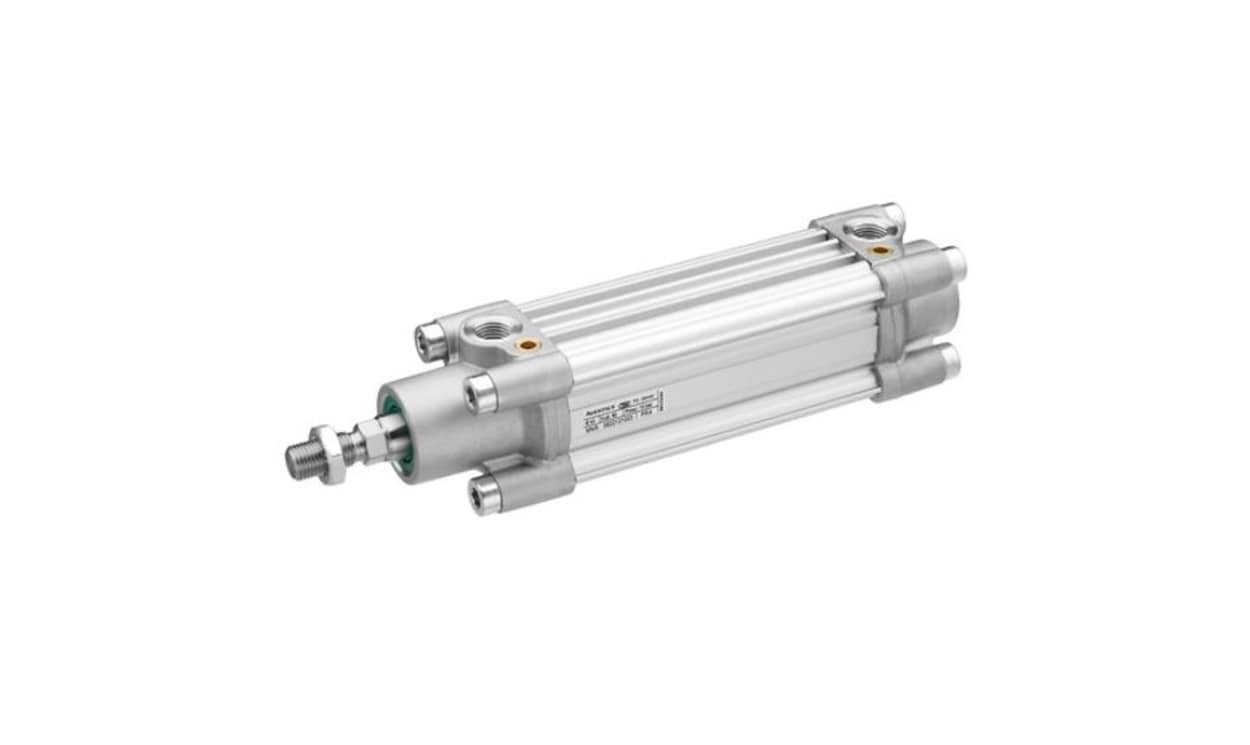

AVENTICS R481601993 ISO Standard Cylinder - , 50mm Bore, 80mm Stroke, PRA Series, Double Acting

Name: AVENTICS R481601993 ISO Standard Cylinder - , 50mm Bore, 80mm Stroke, PRA Series, Double Acting
Brand: Aventics
SKU: R481601993
Availability: OutOfStock

Part Number : R481601993

Availability: Sold out

Detailed Description
Specifications

The Aventics profile cylinder from aventics combines a compact design with integrated sensor slots, offering versatility across various industrial applications. Designed in compliance with ISO 15552 standards, the PRA series excels in general automation, machine construction, and specific industry requirements. The cylinder's double-acting functional principle ensures robust performance in both retraction and extraction, suitable for dynamic operating conditions. With adjustable pneumatic cushioning, it mitigates shock and enhances operational longevity. The materials used, including stainless steel and die-cast aluminium, contribute to its durability and reliability, making it an ideal choice for demanding environments. Offering a range of stroke options and a maximum working pressure of 10 bar, this cylinder guarantees consistent and efficient operation in various settings, enabling seamless integration into existing systems while maintaining industry standards.

Compatible with a variety of industries for enhanced flexibility
Integrated sensor slots help in smooth automation processes
Double-acting functionality allows for efficient performance
Pneumatic adjustable cushioning reduces wear and tear
Constructed from durable materials for long-lasting use
Temperature resilience ensures reliable operation under diverse conditions
Available in multiple stroke lengths for customised applications
Works effectively with minimum and maximum working pressure thresholds
Designed to minimise operational noise and vibration
Compact design aids in space-saving installations

Brand	AVENTICS
Manufacturer Series	PRA
Model Number p	R481601993
Action	Double
Bore	50mm
Stroke	80mm
Port Connection	G 1/4
Pneumatic Connection	G 1/4
Piston Rod Thread Gender	Male
Cushioning Type	Pneumatic Cushioning
Maximum Operating Pressure	10 bar
ISO Standard	15552
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+80°C
