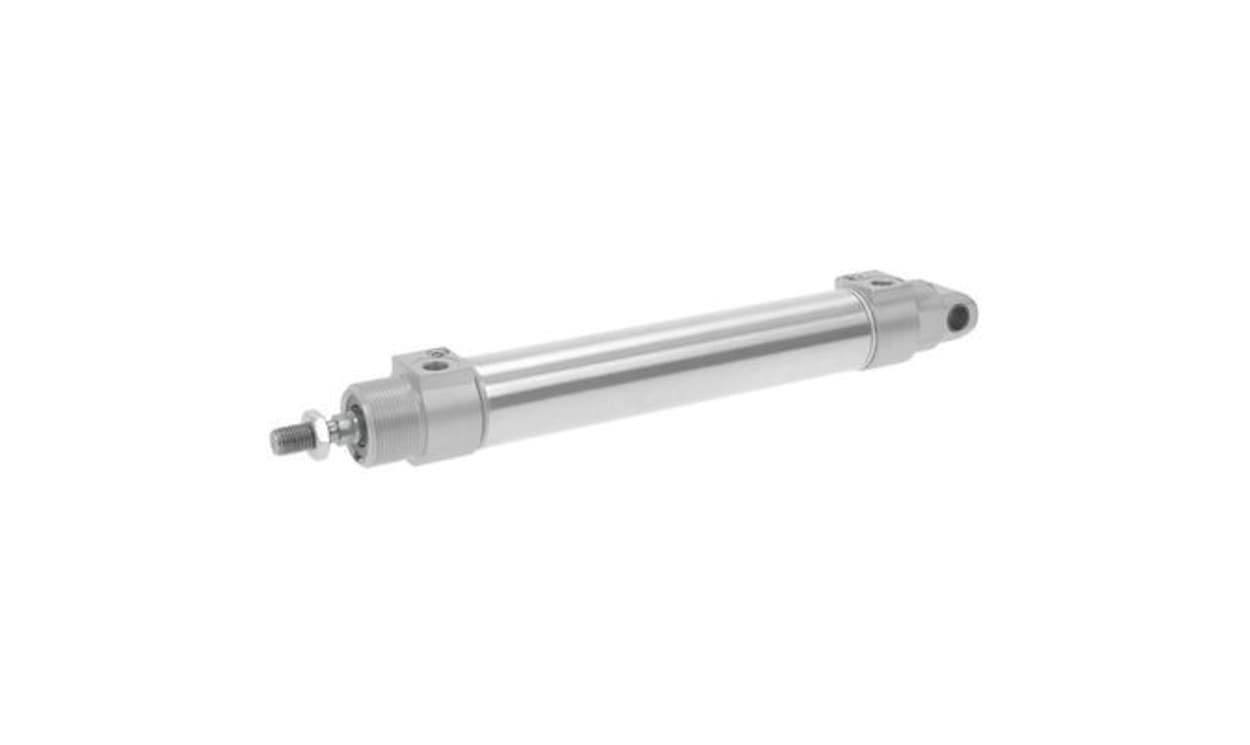

AVENTICS R481609475 Roundline Cylinder - , 63mm Bore, 10mm Stroke, RPC Series, Single Acting
- Detailed Description
- Specifications
Durable stainless steel construction ensures longevity in demanding environments
Food-grade lubricants enhance safety in food-processing applications
Lightweight design simplifies installation and reduces overall system weight
Flexible stroke lengths accommodate a variety of automation needs
Integrated magnetic piston enables easy position sensing
Elastic cushioning enhances performance and reduces wear
Wide temperature and pressure range supports diverse operational conditions
Brand | AVENTICS |
Manufacturer Series | RPC |
Model Number p | R481609475 |
Action | Single |
Stroke | 10mm |
Bore | 63mm |
Pneumatic Connection | G 3/8 |
Port Connection | G 3/8 |
Piston Rod Thread Gender | Male |
Cushioning Type | Elastic |
Maximum Operating Pressure | 10 bar |
ISO Standard | ISO 6431 |
Maximum Operating Temperature | +80°C |
Minimum Operating Temperature | -20°C |
