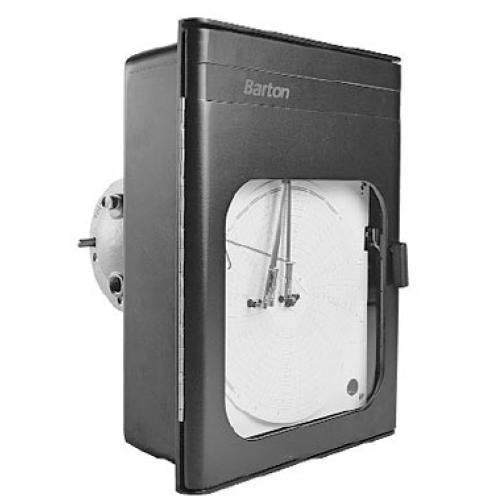

Barton Single Pen Pressure Recorder, Model 242E, Pressure Range: 0-350 Psi, Mechanical Chart Drive: 24 HRs/7 Days
Part No. 242E/0-350 Psi/Mechanical-247
Genuine Barton 242E/0-350 Psi/Mechanical-247 barton 242e pressure recorder, in stock at General Tech Services LLC, UAE. Free UAE shipping.
Request a quote in under a minute - call +971 6 5436933.
The Barton Model 242E is a 12-inch (300mm) chart temperature and pressure recorder offered in one- to four-pen configurations, built for continuous, unattended logging of process pressure or temperature in the field. Perfected construction techniques ensure linearity, low hysteresis and a long service life, backed by a die-cast aluminum case with stainless steel linkage that stands up to industrial and outdoor environments. A disposable felt-tip inking system keeps maintenance simple, and the standard 2-inch pipe mount lets it install directly onto existing process piping.
Ready to order the 242E/0-350 Psi/Mechanical-247? Speak to our team. Call +971 6 5436933
Key Benefits
-
Perfected construction techniques ensure linearity, low hysteresis and a long service life
-
Die-cast aluminum case with stainless steel linkage for industrial and outdoor duty
-
Standard 12 inch (300mm) circular charts for easy, low-cost record replacement
-
Disposable felt-tip inking system keeps maintenance simple
-
Standard 2 inch pipe mount installs directly onto existing process piping
Who This Product Is Best For
-
Oil & gas, water and process sites needing an unattended field pressure log
-
Facilities replacing a worn or damaged chart recorder with a factory-matched model
-
Sites needing a specific chart-drive speed to match logging duration
How to Specify & Commission It
-
Confirm the recorder's range and chart-drive type match your process and required logging interval.
-
Mount the unit on its 2 inch pipe connection at the measurement point.
-
Load a chart of the correct range and fit a fresh felt-tip pen for each pen position.
-
Set the chart drive and confirm the pen traces cleanly before leaving it logging.
Frequently Asked Questions
What pressure range does this Barton 242E cover?
This unit is rated for a pressure range of 0-350 Psi, with a mechanical chart drive: 24 hrs/7 days.
How many pens does the 242E have?
This is a single-pen configuration; the 242E platform is also offered in two-, three- and four-pen versions for recording multiple parameters on one chart.
What size chart does it use?
A standard 12 inch (300mm) nominal diameter circular chart.
How is the recorder mounted?
On a standard 2 inch pipe mount, so it installs directly onto existing process piping.
Mechanical or battery chart drive - which should I choose?
Mechanical drives (2hr/8hr or 24hr/7day) wind up and need no power source; battery-driven units with 11 selectable speeds give more flexibility over the logging interval but need a working battery. Pick based on your site's logging cycle and power access.
Should I choose the 242E/0-350 Psi/Mechanical-247 or the 242E/0-2000 Psi/Mechanical?
Compare the specifications against your process requirements. The 242E/0-2000 Psi/Mechanical differs in rating from the 242E/0-350 Psi/Mechanical-247; contact our team and we'll confirm the exact match for your application.
For pricing or to place an order, contact General Tech Services LLC. Call +971 6 5436933.
