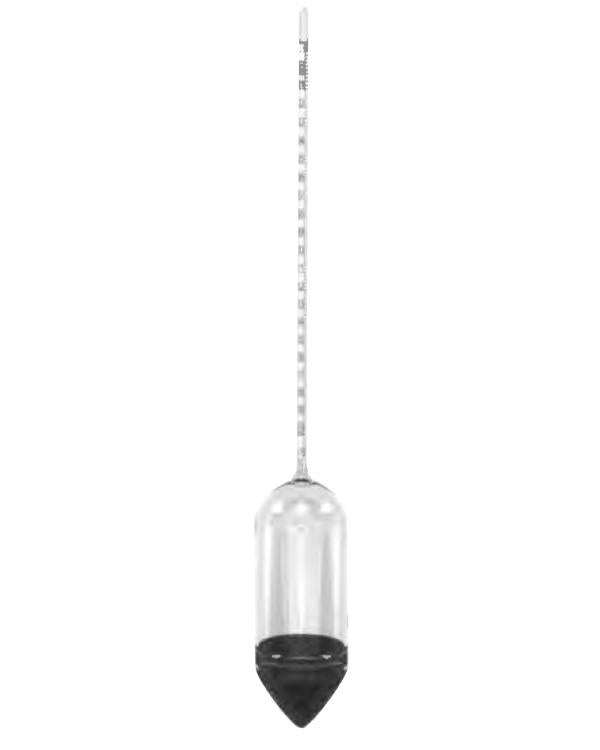

Brannan 10/859/0 | Alcohol Hydrometer, BS 5470 | 960 to 980 kg/m³ at 20 °C
Brannan 10/859/0 is an alcohol hydrometer covering 960 to 980 kg/m³, read in 0.2 kg/m³ divisions with ±0.2 kg/m³ accuracy and adjusted at 20 °C. It measures the density of ethanol/water mixtures, is made to BS 5470 from soda glass with steel shot ballast, and has a 300 mm maximum length with a 38 mm bulb.
Key features
- Measures the density of ethanol/water mixtures in kg/m³
- Made to BS 5470, adjusted at 20 °C
- Divisions and accuracy 0.2 kg/m³
- Supplied in a protective, resealable plastic tube
- Made in UK
Brannan can supply this hydrometer with UKAS certification, a certificate traceable to a recognised national standard or a statement of conformity.
- Specifications
- Downloads
| Part Number | 10/859/0 |
| Brand | Brannan |
| Range | 960 to 980 kg/m³ |
| Standard | BS 5470 |
| Material | Soda glass, steel shot ballast, synthetic wax resin |
| Max length | 300mm |
| Bulb diameter | 38mm |
| Accuracy | +/- 0.2 kg/m³ |
| Divisions | 0.2 kg/m³ |
| Approx weight | 172g (including 42g protective plastic tube) |
