Brannan 34/690/0 | Replacement 4-Scale Pressure Gauge | 100 mm, 1/4 in BSP bottom, 0-100 psi / 0-700 kPa
Part Number : 34/690/0

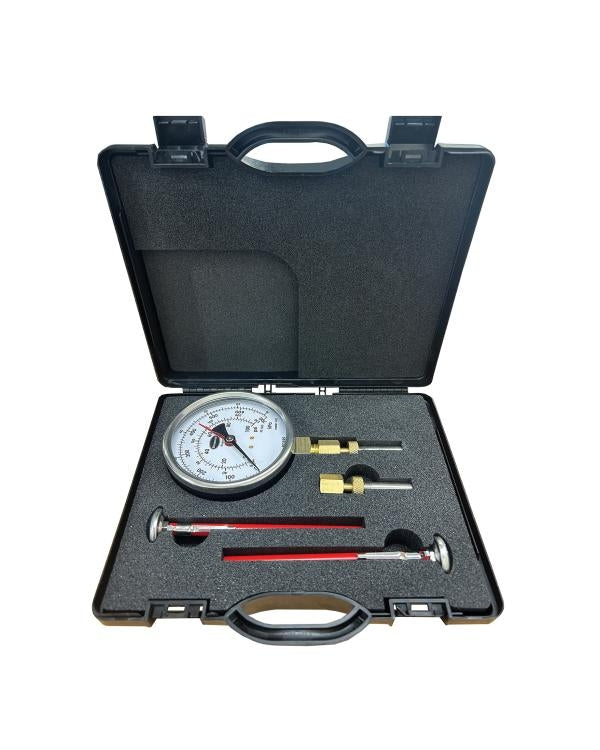

Brannan 34/690/0 is the replacement 100 mm (4 in) four-scale pressure gauge for the 39/340/0 pressure and temperature test plug kit, reading 0 to 100 psi, 0 to 230 ft H2O, 0 to 700 kPa and 0 to 70 m H2O, with a 1/4 in BSP brass bottom entry connection. The kit gives quick, temporary readings of a system's internal pressure and temperature without shutting the system down, for commissioning and maintaining HVAC, plumbing and industrial piping systems.
Key features
- Adjustable loose red pointer
- Black steel case, stainless steel bezel, snap fit acrylic window
- Cu-alloy bourdon tube and movement
- Accuracy class 1.6%, IP 43, dry
- Designed to BS EN 837 / ASME B40.100, safety category S1
For pricing, please contact our experts.
