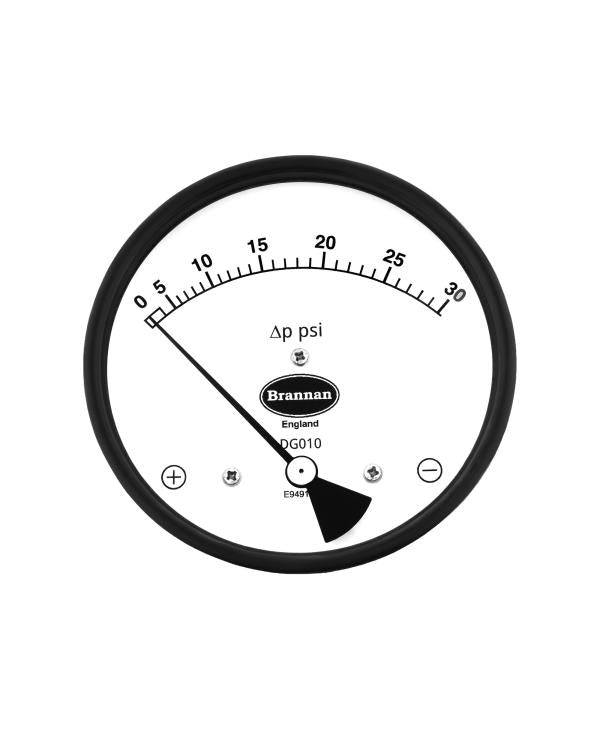

Brannan DG010 | Differential Pressure Gauge, Piston Type | 0-0.15 to 0-70 bar
Part Number : DG010
The Brannan DG010 measures differential pressure with a magnetically coupled piston and copes with high static pressure: up to 200 bar with aluminium or brass bodies and 400 bar with SS316 or Monel. Ranges run from 0 to 0.15 bar through to 0 to 70 bar. As marginal migration of media from the high to the low side can occur, it is meant for duties where this is acceptable, such as filtration, hydraulic systems, leak detection and water treatment.
Key features
- Magnetic piston measuring principle
- Static pressure to 200 bar (Al/brass) or 400 bar (SS316/Monel)
- Bottom, back or in-line connection
- SS304 case with rubber ring, IP66

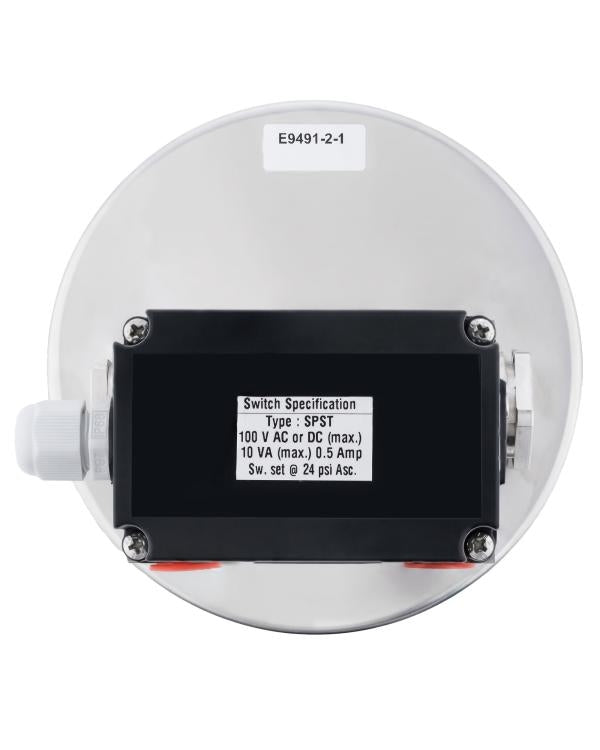

- ±2% FS accuracy, optional switch output
Brannan offers certification, a certificate traceable to recognised national standards, or a statement of conformity for this gauge.
For pricing, please contact our experts.
