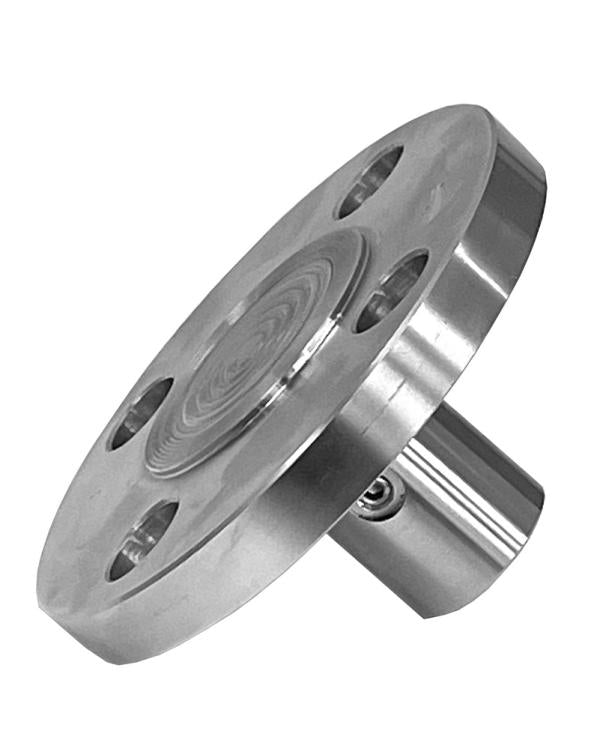

Brannan DS002 | Diaphragm Seal, Flanged Flush Type | ANSI B16.5, 1.5 to 3 in
Part Number : DS002
The Brannan DS002 is a flanged diaphragm seal with a welded diaphragm sitting flush with the machined, raised face flange. The flange is designed to ANSI B 16.5 in 1.5, 2 or 3 in sizes and ratings from 150 to 2500 lb, with maximum pressure set by the flange rating. A choice of diaphragm materials and fill fluids lets it be matched to oil and gas, process and petrochemical media.
Key features
- Welded flush diaphragm
- Flange to ANSI B 16.5, raised face
- Flange sizes 1.5, 2 or 3 in; 150 to 2500 lb ratings
- Diaphragm in SS316L, Hastelloy C, Inconel, Monel or tantalum
- Glycerine, silicone, halocarbon or Syltherm 800 fill
For pricing, please contact our experts.
