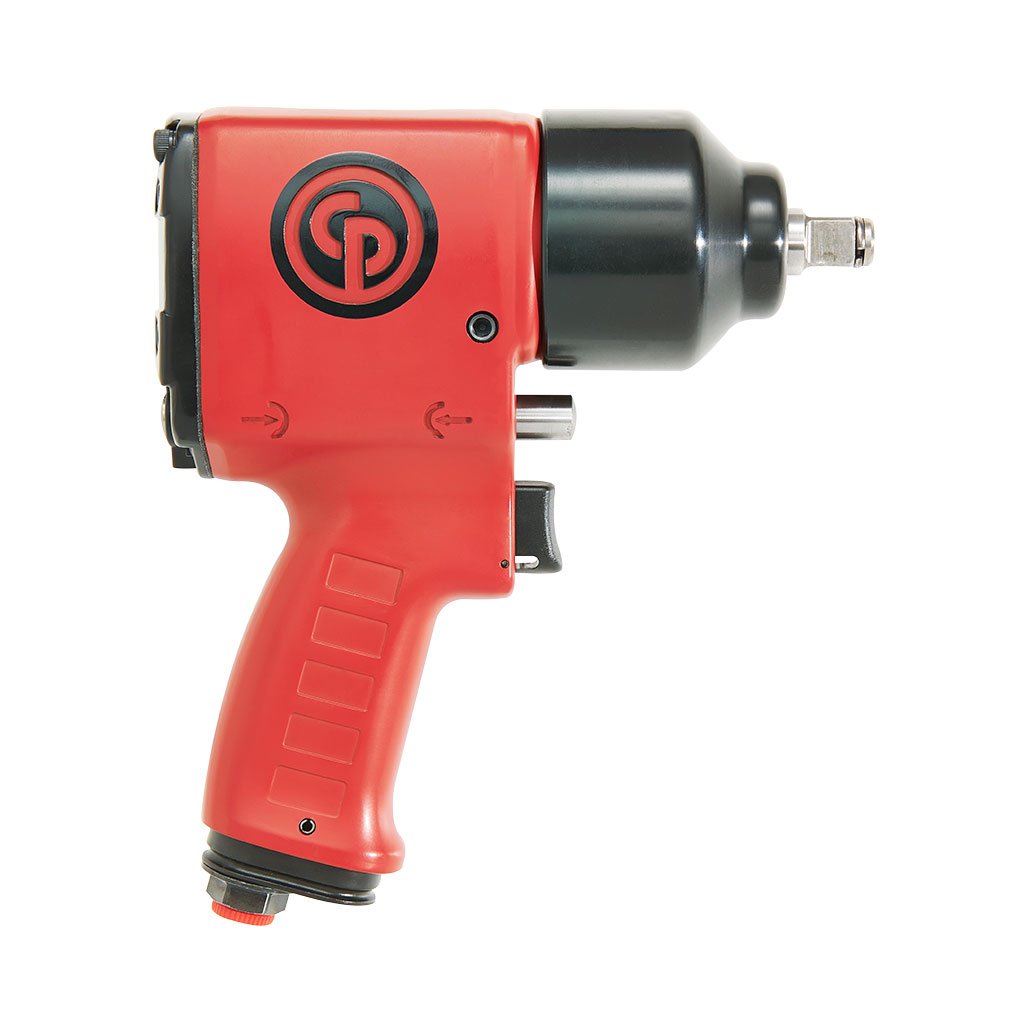

Chicago Pneumatic CP7620 1/2 Impact Wrenches 34-420NM

Name: Chicago Pneumatic CP7620 1/2 Impact Wrenches 34-420NM
Brand: ChicagoPneumatic
SKU: CP7620
Price: 1235.63 AED
Availability: OutOfStock

Part Number : CP7620

Compact & Durable. Compact. Durable. Rugged. Easy to operation. Operator comfort with smooth clutch mechanism & curved handle. A powerful yet economical tool ideal for general repair, transmission work, exhaust systems, and body shops.Range: 34 - 420 Nm 25 - 310 ft.lbs

Availability: Sold out

Specifications
Features

Actual air consumption	Metric: 8.4 l/s Imperial: 17.7 cfm
Air inlet thread size	1/4"
Average air consumption	Metric: 2 l/s Imperial: 4.2 cfm
Brand	Chicago Pneumatic
Free Speed	10000 rpm
Length	Metric: 180 mm Imperial : 7.1"
Maximum Torque (reverse)	Metric: 576 Nm Imperial: 425 ft.lbs
Min. Hose Size	Metric: 10 mm Imperial: 3/8"
Model Number	CP7620
Net weight	Metric: 2.33 kg Imperial: 5.1 lb
Over carton	Metric: 455239342 mm Imperial: 17.99.413.5
Power/weight ratio	Metric: 247.2 Nm/kg Imperial: 82.8 ft.lb/lb
Product Number	8941076200
Range Imperial	25 - 310 ft.lbs
Range Metric	34 - 420 Nm
Side to center	Metric: 33 mm Imperial: 1.3"
Sound Power	105 db(A)
Sound pressure	94 db(A)
Square Drive	1/2"
Vibration uncertainty (K)	2 1/2 m/s2
Vibration	4.9 m/s2
Working Torque Range (reverse)	Metric: - 576 Nm Imperial: - 425 ft.lbs

Pin clutch mechanism in oil bath
One-handed push button forward/reverse with 2 power setting positions in both sides
Full power in reverse
Double teasing trigger
Curved handle
Aluminum body with composite cover
Through handle air exhaust and 360° air inlet swivel
