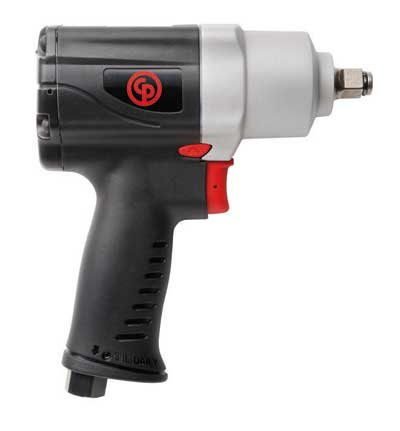

Chicago Pneumatic CP7739 1/2 Impact Wrenches 68-414NM
Side-2-Side: unique reverse technology for perfect balance & power. General Maintenance. Maximize operator comfort with an extremely light & well balanced tool. Most convenient and unique reverse technology in the market.Range: 68 - 414 Nm 50 - 305 ft.lbs
- Specifications
- Features
| Actual air consumption | Metric: 9.4 l/s Imperial: 20 cfm |
| Air inlet thread size | 1/4" |
| Brand | Chicago Pneumatic |
| Free Speed | 9900 rpm |
| Length | Metric: 163 mm Imperial: 6.4" |
| Min. Hose Size | Metric: 10 mm Imperial: 3/8" |
| Model Number | CP7739 |
| Net weight | Metric: 1.2 kg Imperial: 2.78 lb |
| Power/weight ratio | Metric: 508.3 Nm/kg Imperial: 161.9 ft.lb/lb |
| Product Number | 8941077390 |
| Range Imperial | 50 - 305 ft.lbs |
| Range Metric | 68 - 414 Nm |
| Side to center | Metric: 26 mm Imperial: 1" |
| Sound Power | 103 db(A) |
| Sound pressure | 92 db(A) |
| Square Drive | 1/2" |
| Vibration uncertainty (K) | 2 1/2 m/s2 |
| Vibration | 6.9 m/s2 |
- Mini 1/2" compact impact wrench for general maintenance
- Twin hammer clutch
- Composite handle and magnesium clutch housing
- S2S technology and 3 positive power settings
- Full teasing trigger
