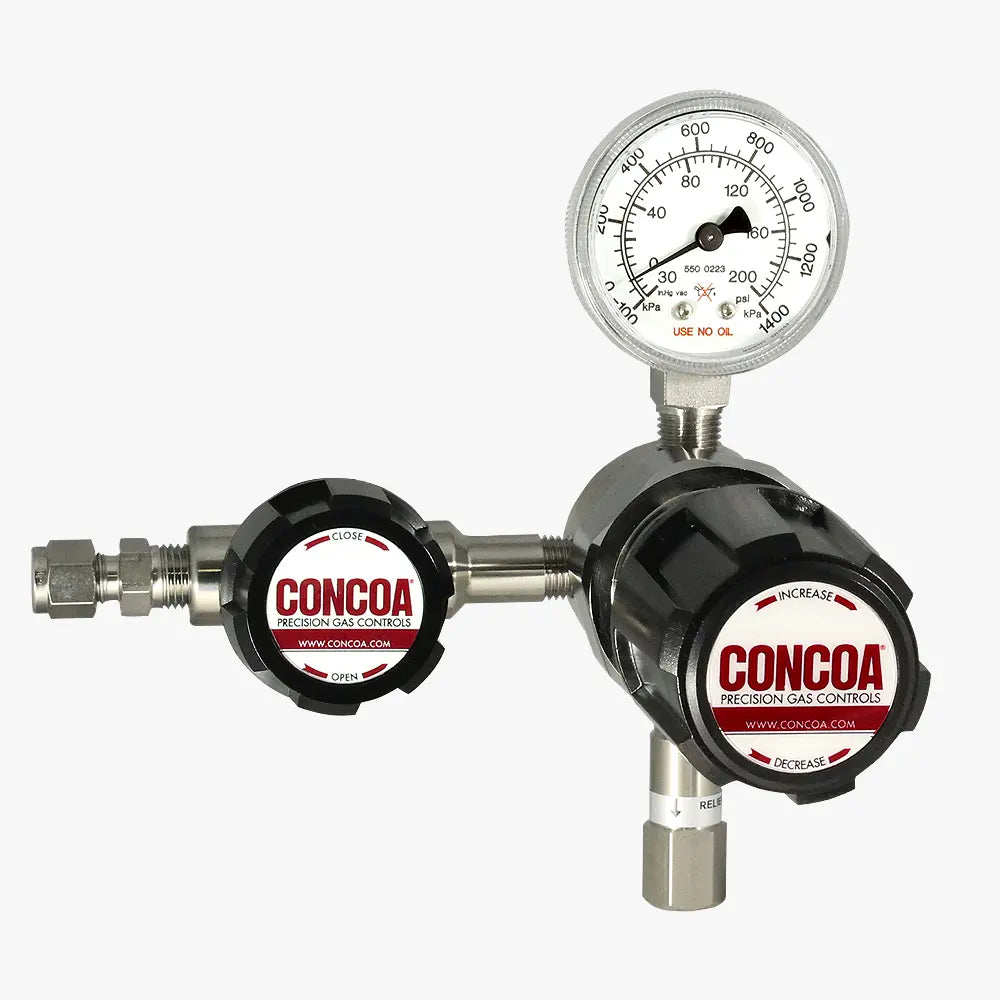

CONCOA 425 Series | Stainless Steel Line Regulator | 316L Stainless, Full Cylinder Rating
Part Number : CONCOA-425-SERIES-REGULATOR
The CONCOA 425 Series is a 316L stainless steel line regulator for secondary control of ultra-high purity gases, including corrosive and toxic gases, or for point-of-use monitoring and control. It is rated to full cylinder pressure so it stays safe if primary control fails. There is no fixed part number for the 425 Series; units are built to an ordering code that specifies outlet range, gauges, connections and options.
- Metal-to-metal diaphragm seal
- Captured vent capable bonnet
- Maximum inlet pressure (bare body): 3000 PSIG (210 BAR)
- Body: 316L Stainless steel barstock; bonnet: chrome-plated brass barstock
- Diaphragm: 316L stainless steel; seat: PTFE
- Filter: Patented 10-micron 316 stainless steel mesh
- Helium leak integrity 1 x 10⁻⁹ scc/sec; Cv 0.1 Max outlet 50 PSIG (3.5 BAR) or less; 0.2 Max outlet above 50 PSIG (3.5 BAR)
For pricing, please contact our experts.
