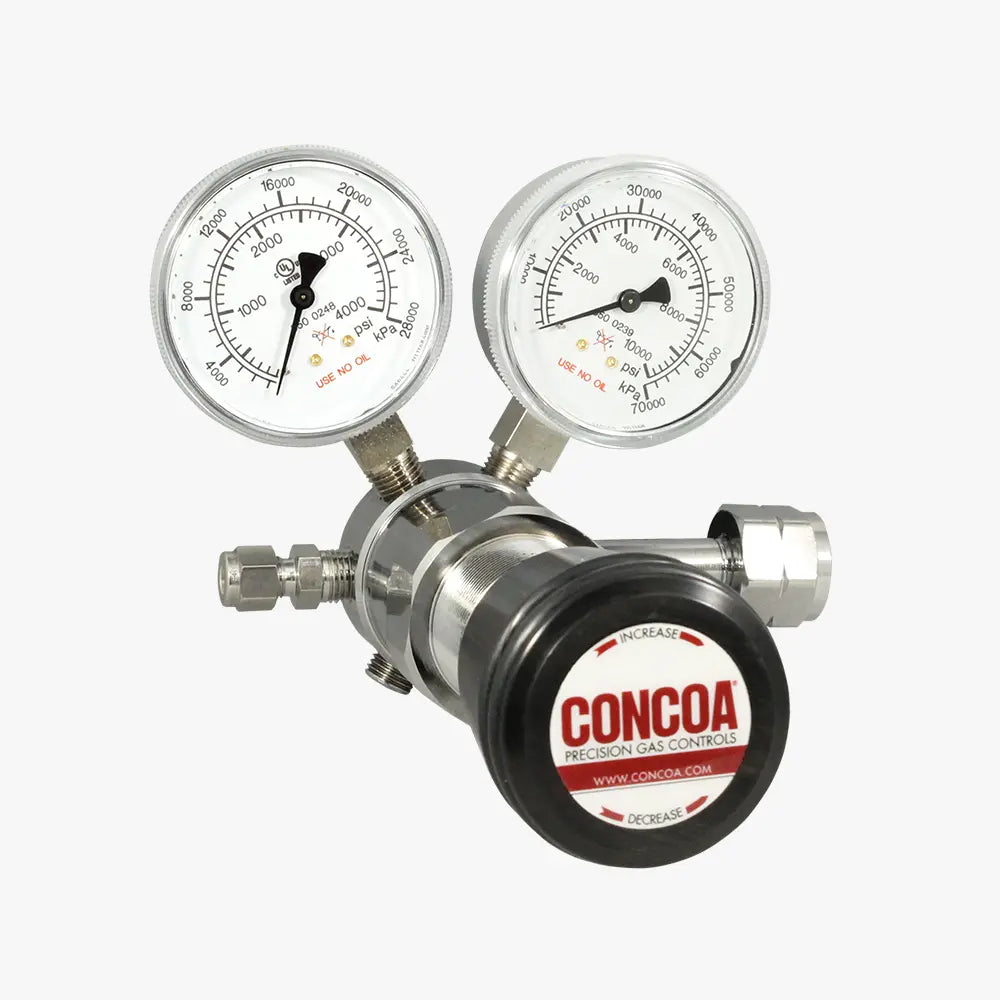

CONCOA 492 Series | Piston Cylinder Regulator | Up to 6000 PSIG Inlet, Chrome-Plated Brass
Part Number : CONCOA-492-SERIES-REGULATOR
CONCOA 492 Series cylinder regulators handle primary pressure control of non-corrosive gases in high purity work that needs ultra-high cylinder pressure. Instead of a diaphragm, a piston assembly senses pressure, keeping control safe at inlet pressures up to 6000 PSIG (415 BAR).
The series is configured to order with factory-installed options. CONCOA lists set-ups as a single station manifold with or without purge, with a low-pressure alarm, or with multiple inlets; inlet rating, outlet range, gauges and connections are also chosen when ordering.
- Piston pressure sensor rated to 6000 PSIG (415 BAR)
- CAPSULE seat design with 360° filtration
- Mounts from the front or rear of a panel
- Field-adjustable pressure limit for downstream protection
- Chrome-plated brass body and bonnet, brass piston
For pricing, please contact our experts.
