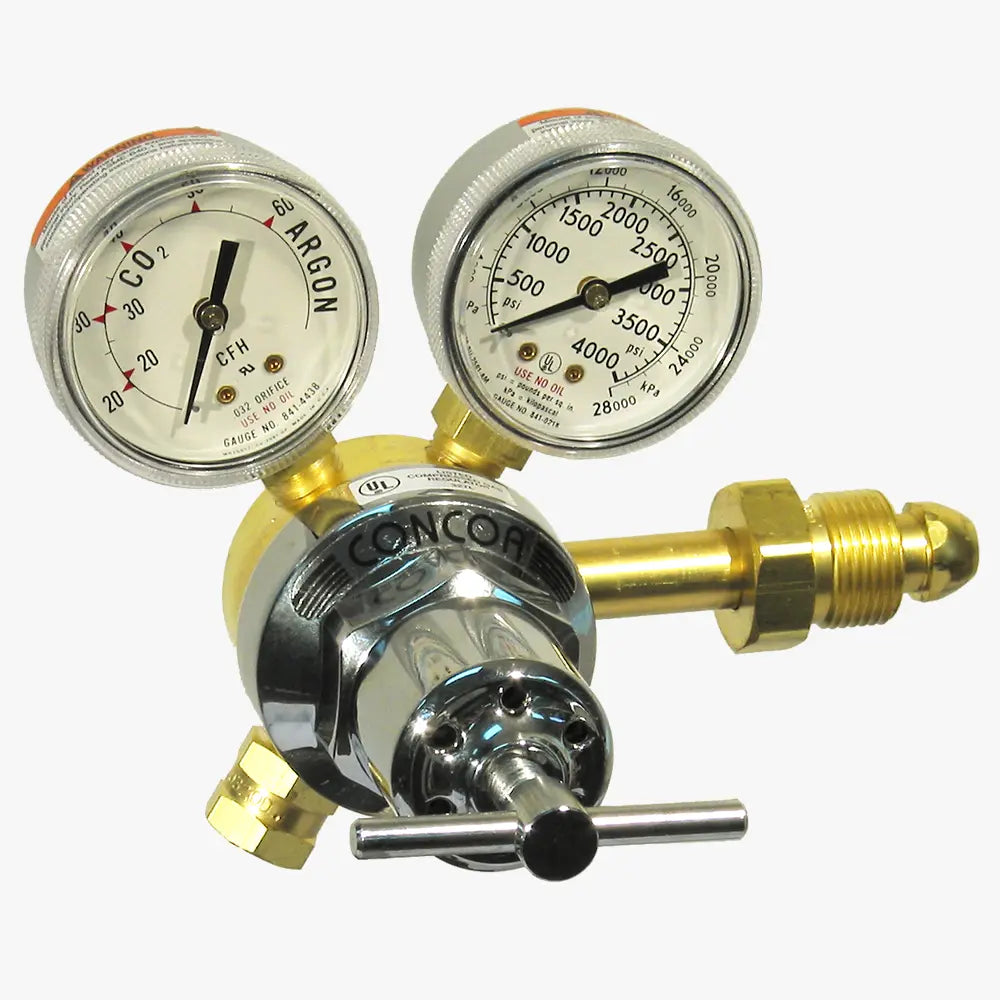

CONCOA 8065505-01-1 | 5500 Series Flowgauge Regulator | Carbon Dioxide, CGA 320, 3000 PSIG Inlet
Part Number : 8065505-01-1
CONCOA 8065505-01-1 is a 5500 Series flowgauge regulator for carbon dioxide service, with a CGA 320 inlet, PTFE seat and 3000 PSIG (210 BAR) maximum inlet pressure. Its gauges are a 15-50 SCFH Carbon Dioxide/15-60 SCFH Argon Flowgauge and 0-4000 PSIG/0-28,000 kPa Inlet Gauge. It provides primary flow control with flow measurement for carbon dioxide cylinder applications.
Key features
- Forged brass body with chrome-plated, die-cast zinc bonnet on 8065505-01-1
- Steady control from the chloroprene diaphragm in 8065505-01-1
- CAPSULE® seat assembly in 8065505-01-1 for longer life and serviceability
- 8065505-01-1 outlet: 5/8 in -18 (B) RH Int, with 25-micron bronze filter
For pricing, please contact our experts.
