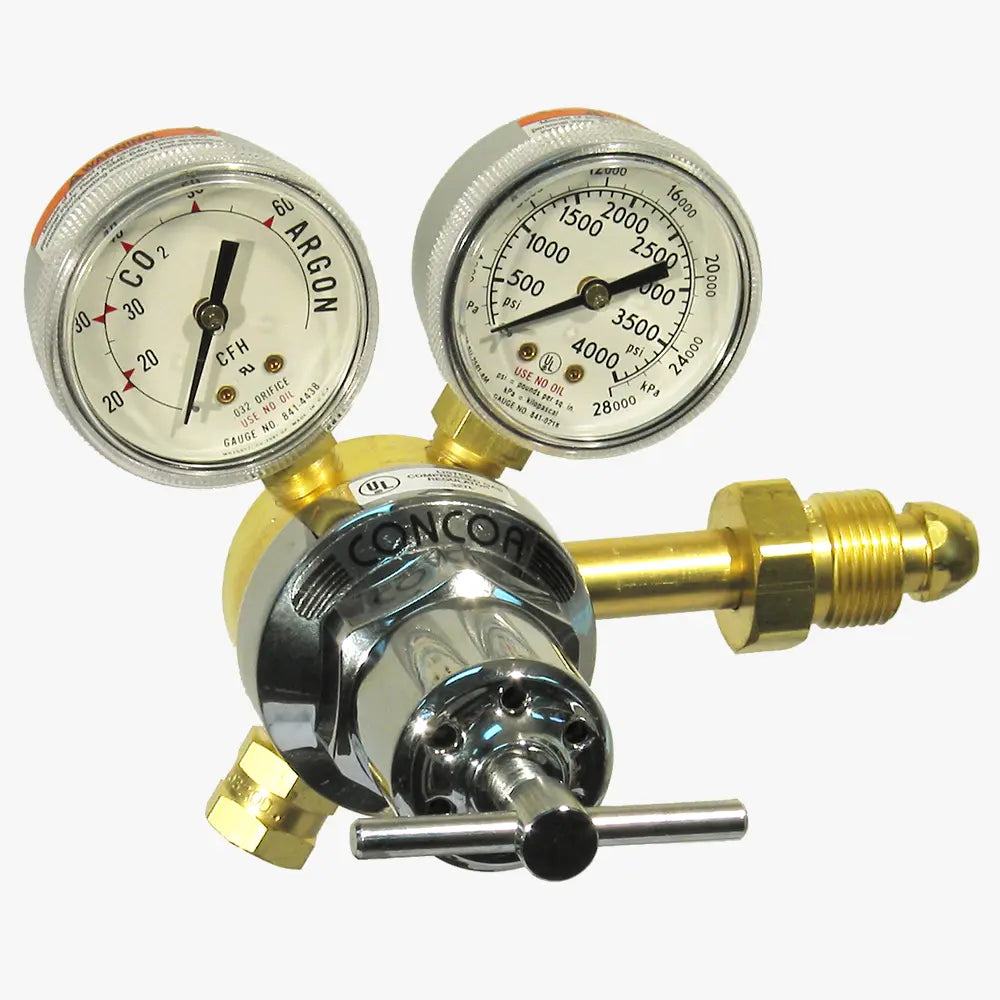

CONCOA 8065517-01-1 | 5500 Series Flowgauge Regulator | Argon, CGA 580, 3000 PSIG Inlet
Part Number : 8065517-01-1
Built for argon cylinders, the CONCOA 8065517-01-1 flowgauge regulator connects through CGA 580, uses a PTFE seat and accepts up to 3000 PSIG (210 BAR). Gauging: 20-60 SCFH Argon/20-30 SCFH Carbon Dioxide Flowgauge and 0-4000 PSIG/0-28,000 kPa Inlet Gauge. Use 8065517-01-1 where cylinder gas flow must be both regulated and read on a flowgauge.
Key features
- Steady control from the chloroprene diaphragm in 8065517-01-1
- CAPSULE® seat assembly in 8065517-01-1 for longer life and serviceability
- 8065517-01-1 outlet: 5/8 in -18 (B) RH Int, with 25-micron bronze filter
- Forged brass body with chrome-plated, die-cast zinc bonnet on 8065517-01-1
For pricing, please contact our experts.
