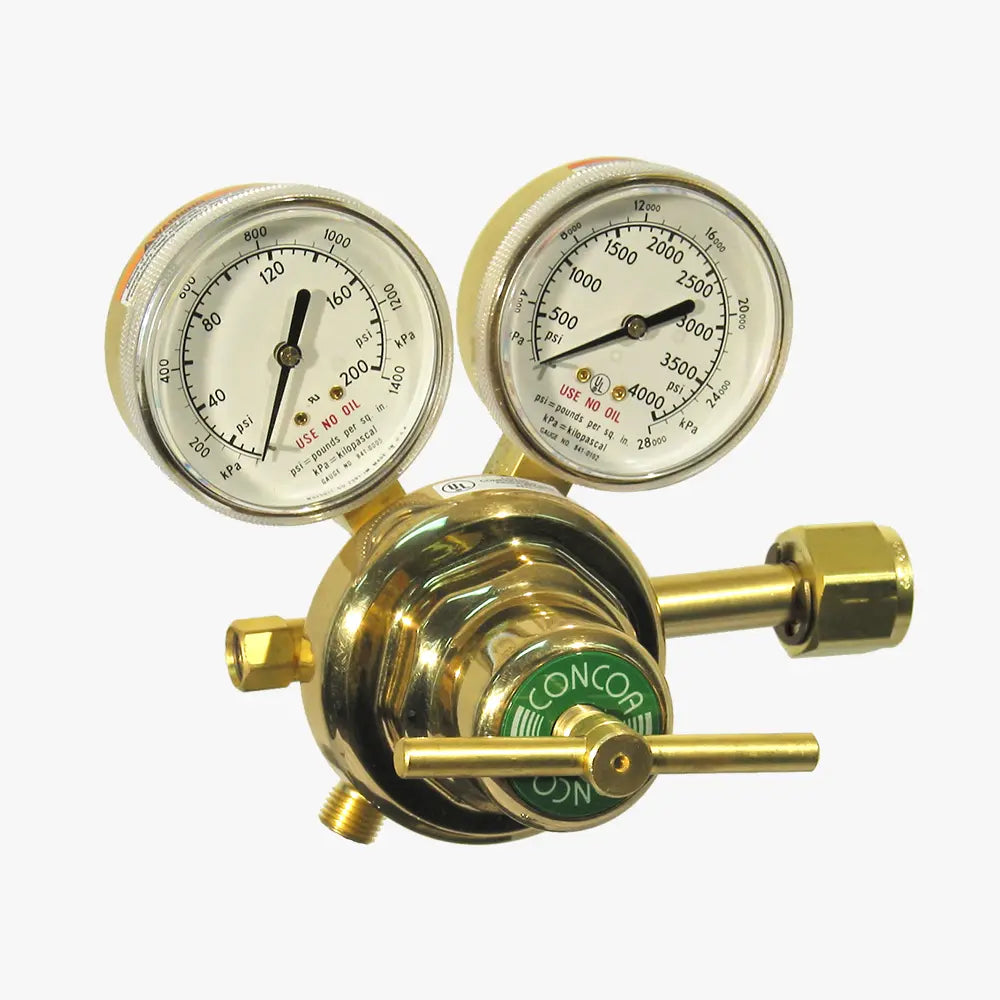

CONCOA 8066632-01-1 | 6600 Series Cylinder Regulator | Fuel Gas, CGA 510, 40 PSIG Delivery
Part Number : 8066632-01-1
Part 8066632-01-1 sets up the 6600 Series Cylinder Regulator for fuel gas service, pairing a CGA 510 inlet with a 9/16 in -18 (B) LH Ext outlet connection. Maximum delivery pressure is 40 PSIG (3 BAR), inlet pressure is rated to 300 PSIG (21 BAR) and the seat is PTFE. Gauges on this fuel gas model read 0-60 PSIG/0-400 kPa and 0-400 PSIG/0-2800 kPa.
Key features
- A 25-micron sintered bronze filter with medium-large seat displacement for high flow capacity
- An operating range of -40°F to 140°F (-40°C to 60°C), plus a forged brass body and bonnet
- A Cv of 0.2 with a heavy-duty machined brass bonnet
For pricing, please contact our experts.
