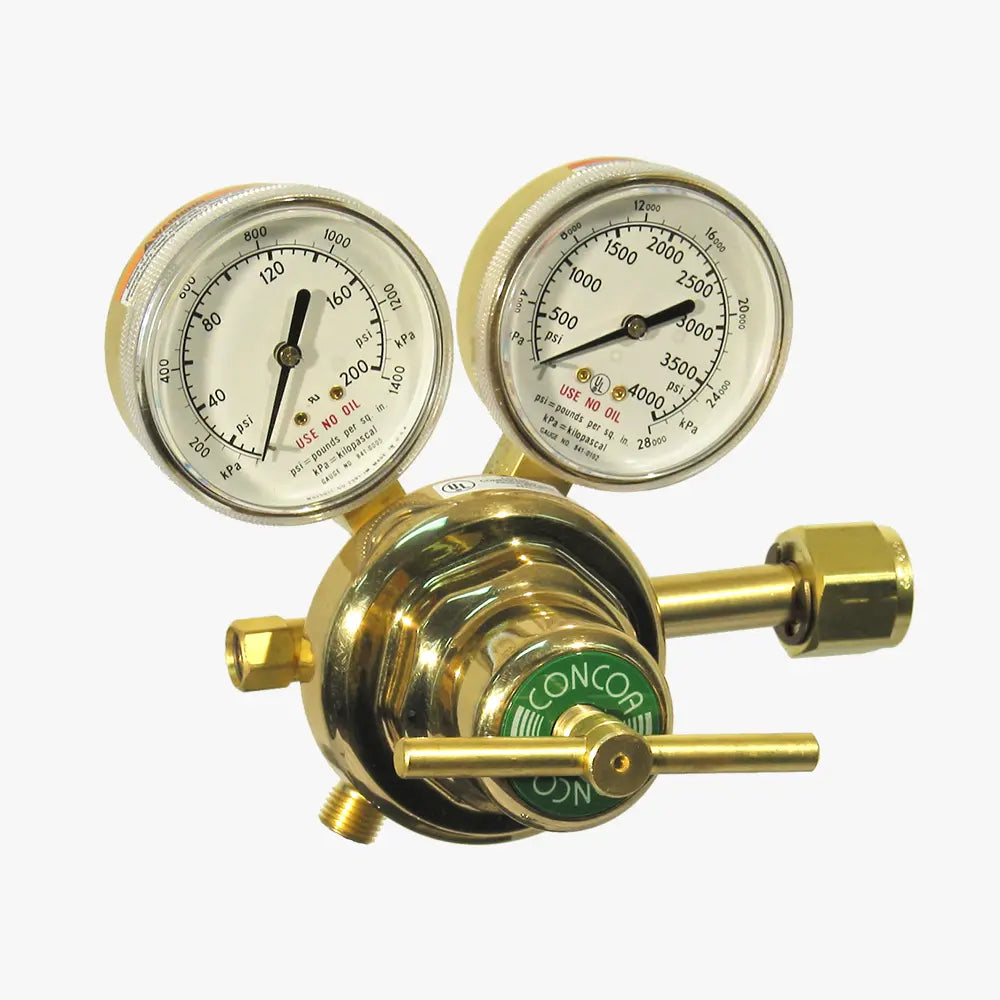

CONCOA 8066643-01-1 | 6600 Series Cylinder Regulator | Industrial Air, CGA 347, 250 PSIG Delivery
Part Number : 8066643-01-1
The CONCOA 8066643-01-1 cylinder regulator is built for industrial air cylinders, with a CGA 347 inlet and 1/4 in MNPT outlet. With a PCTFE seat, this model accepts up to 5500 PSIG (380 BAR) at the inlet and supplies up to 250 PSIG (17 BAR) downstream. Its industrial air gauges are scaled 0-400 PSIG/0-2800 kPa and 0-6000 PSIG/0-42,000 kPa.
Key features
- An operating range of -40°F to 140°F (-40°C to 60°C) and a forged brass body and bonnet
- A Cv of 0.2, plus a heavy-duty machined brass bonnet
- Cleanliness that meets or exceeds CGA G-4.1 with a chloroprene diaphragm for steady pressure control
- CRN OH5216.5R2 registration and medium-large seat displacement for high flow capacity
For pricing, please contact our experts.
