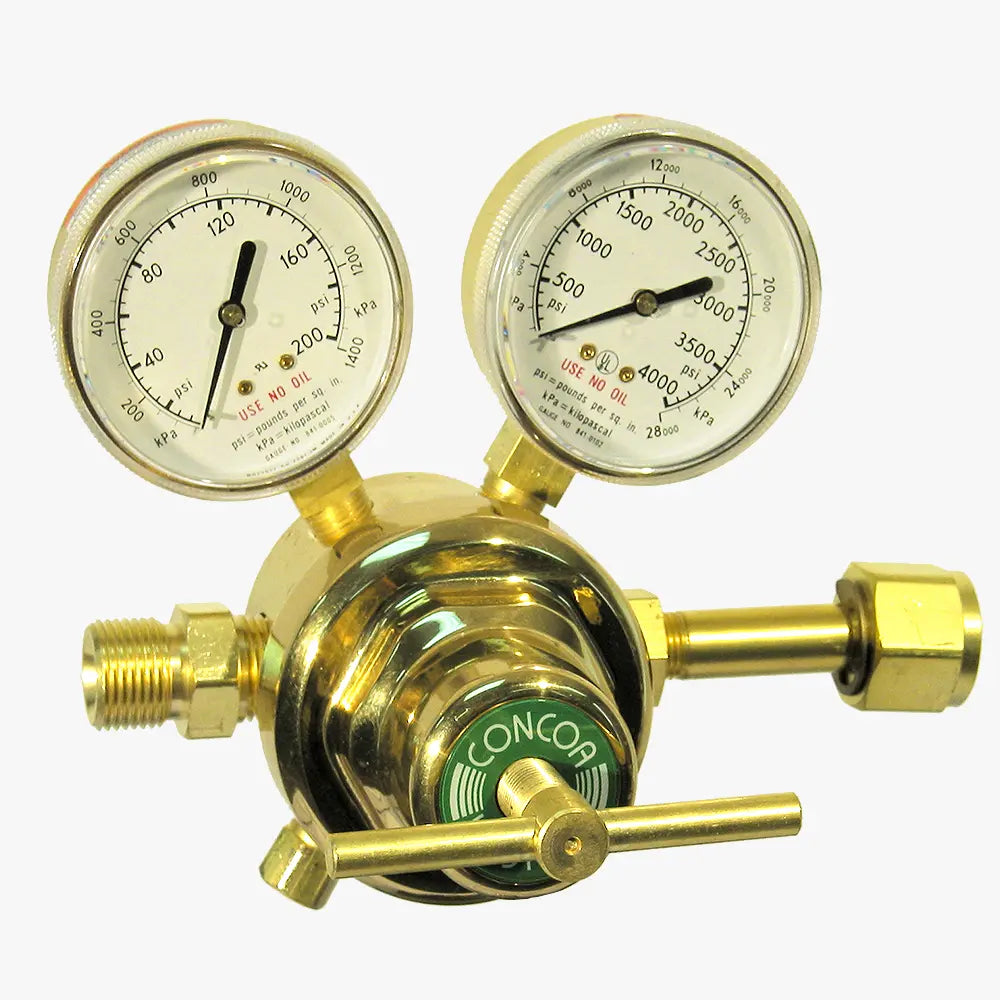

CONCOA 8066705-01-1 | 6700 Series Cylinder Regulator | Inert Gas Mixtures, CGA 580, 120 PSIG Delivery
Part Number : 8066705-01-1
The CONCOA 8066705-01-1 heavy-duty cylinder regulator is built for argon, nitrogen, helium and carbon dioxide mixtures (inert gas) cylinders, with a CGA 580 inlet and 7/8 in -14 (C) RH Int outlet. With an FKM seat, this model regulates outlet pressure up to 120 PSIG (8 BAR). Gauges fitted to 8066705-01-1 read 0-200 PSIG/0-1400 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- 1/2 in seat and inlet ports for very high flow and a 40-micron 316L stainless steel filter
- A 3000 PSIG (210 BAR) maximum inlet rating without peripherals, plus a balanced stem seat that limits static increment
- A brass barstock body with a heavy forged brass bonnet
- A chloroprene diaphragm with 2 1/2 in (63 mm) brass gauges
For pricing, please contact our experts.
