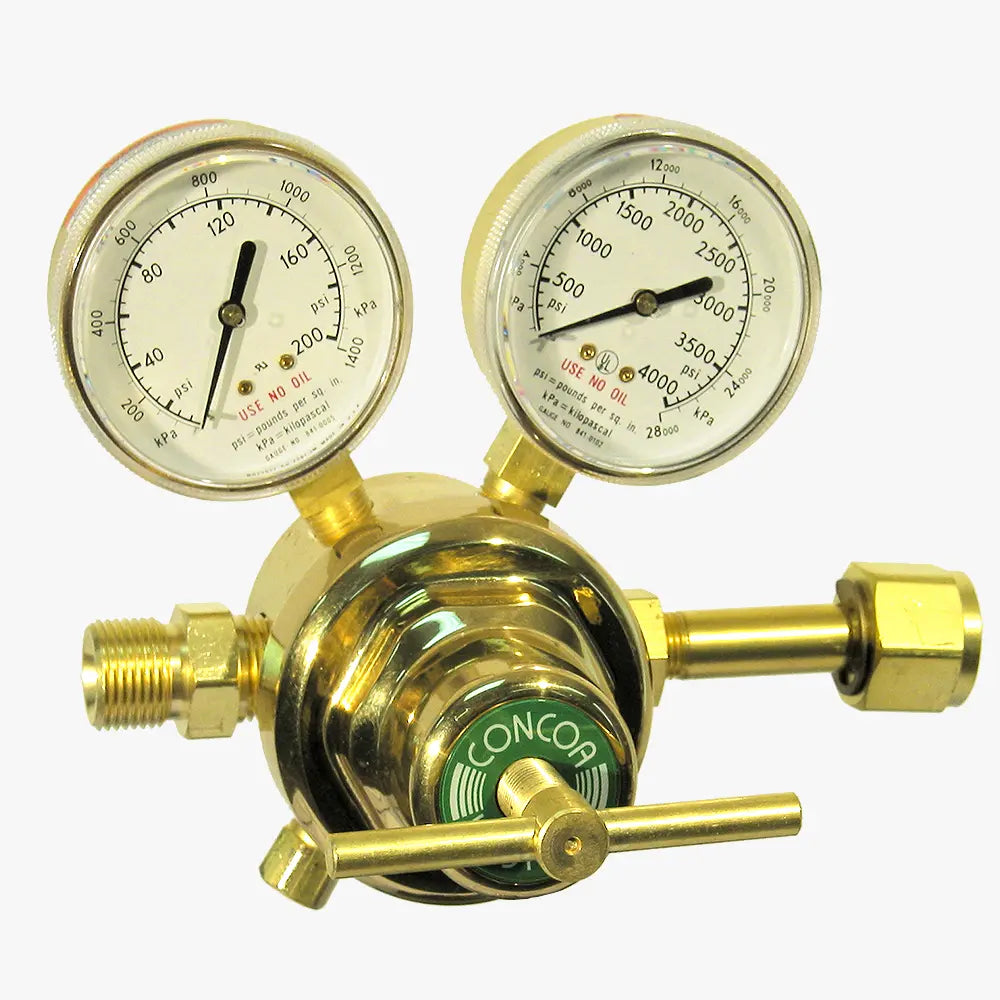

CONCOA 8066709-01-1 | 6700 Series Cylinder Regulator | Acetylene, CGA 510, 15 PSIG Delivery
Part Number : 8066709-01-1
The CONCOA 8066709-01-1 heavy-duty cylinder regulator is built for acetylene cylinders, with a CGA 510 inlet and 7/8 in -14 (C) LH Ext outlet. With a chloroprene seat, this model regulates outlet pressure up to 15 PSIG (1 BAR). The two gauges read 0-30 PSIG/0-200 kPa and 0-400 PSIG/0-2800 kPa.
Key features
- A heavy forged brass bonnet with a 3000 PSIG (210 BAR) maximum inlet rating without peripherals
- A 40-micron 316L stainless steel filter and a balanced stem seat that limits static increment
- A chloroprene diaphragm, plus 1/2 in seat and inlet ports for very high flow
- 2 1/2 in (63 mm) brass gauges, plus a brass barstock body
For pricing, please contact our experts.
