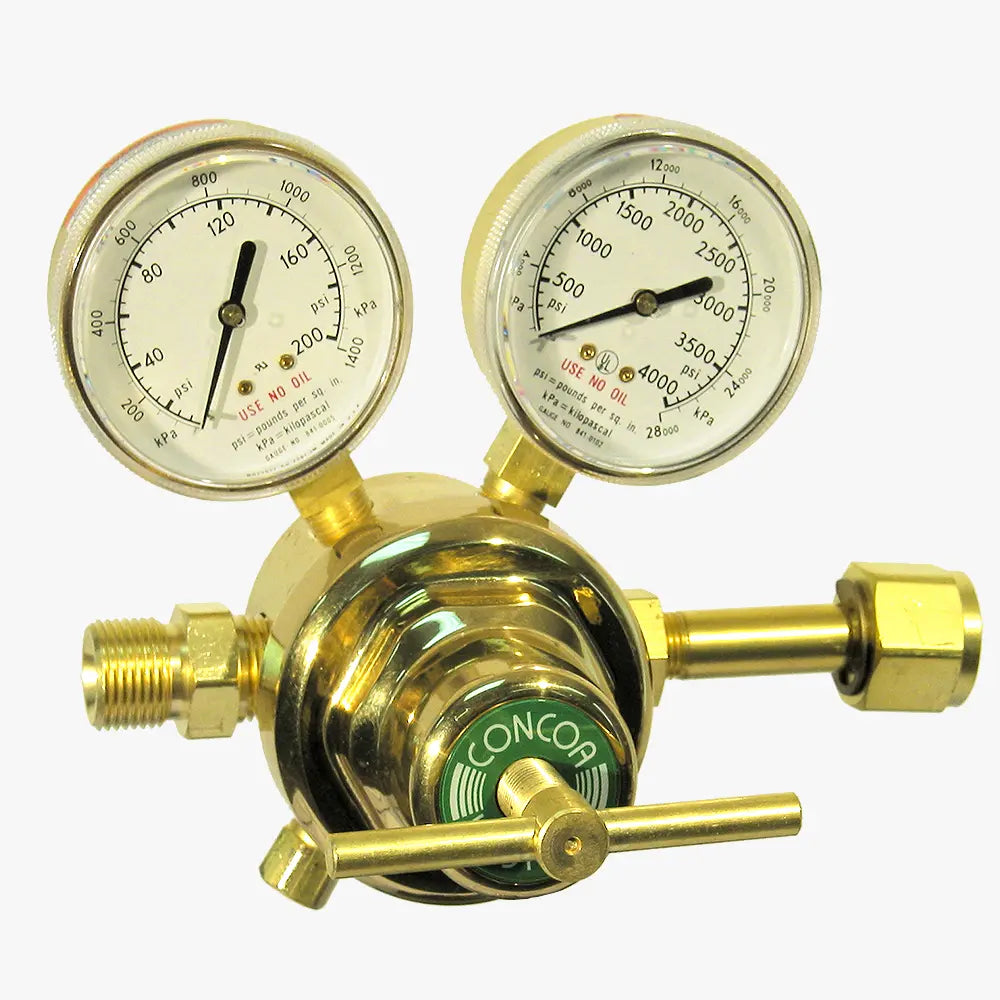

CONCOA 8066717-01-1 | 6700 Series Cylinder Regulator | Oxygen, CGA 540, 200 PSIG Delivery
Part Number : 8066717-01-1
Part 8066717-01-1 sets up the 6700 Series Cylinder Regulator for oxygen service, pairing a CGA 540 inlet with a 9/16 in -18 (B) RH Ext outlet connection. With an FKM seat, this model regulates outlet pressure up to 200 PSIG (14 BAR). Gauges on this oxygen model read 0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- A chloroprene diaphragm with a brass barstock body
- 2 1/2 in (63 mm) brass gauges, plus a balanced stem seat that limits static increment
- A Cv of 2.0 with 1/2 in seat and inlet ports for very high flow
- An operating range of -40°F to 140°F (-40°C to 60°C) and a 3000 PSIG (210 BAR) maximum inlet rating without peripherals
For pricing, please contact our experts.
