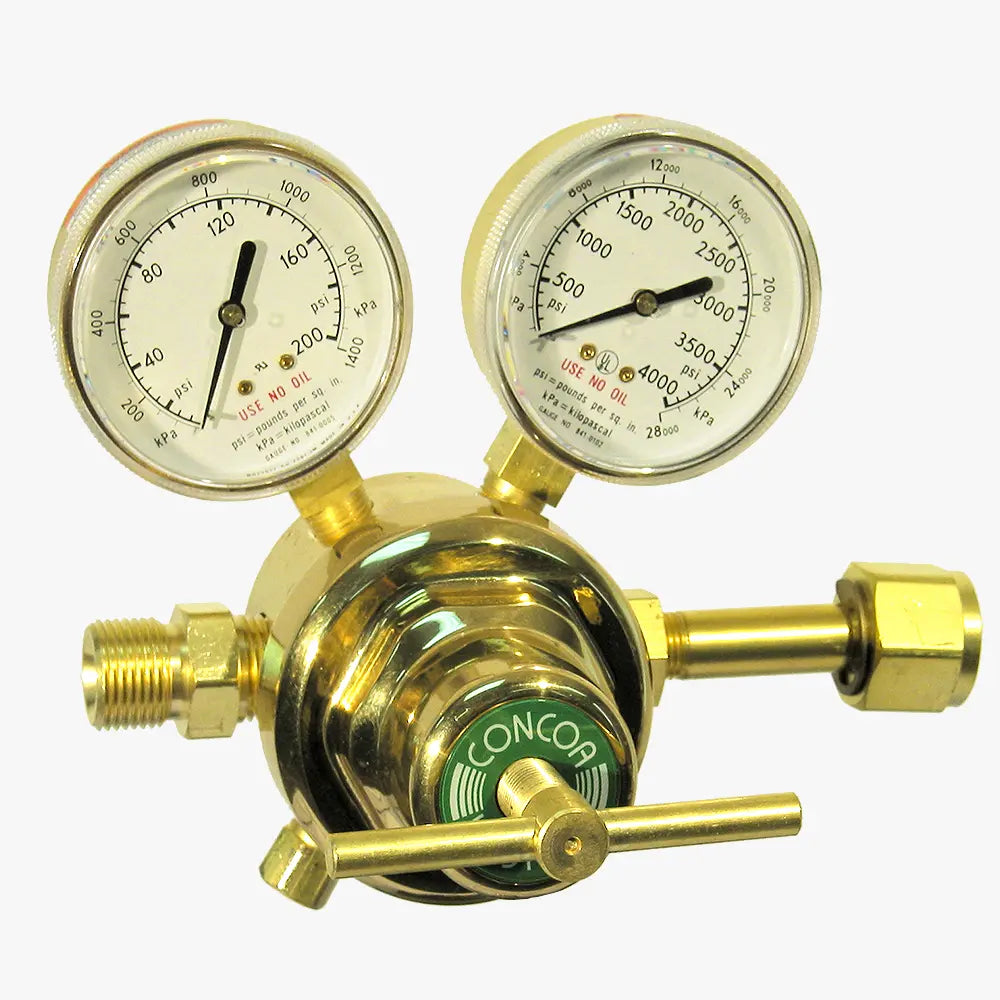

CONCOA 8066718-01-1 | 6700 Series Cylinder Regulator | Compressed Air, CGA 346, 200 PSIG Delivery
Part Number : 8066718-01-1
The CONCOA 8066718-01-1 heavy-duty cylinder regulator is built for compressed air cylinders, with a CGA 346 inlet and 7/8 in -14 (C) RH Ext outlet. Outlet pressure is adjustable up to 200 PSIG (14 BAR), with FKM as the seat material. Its compressed air gauges are scaled 0-400 PSIG/0-2800 kPa and 0-4000 PSIG/0-28,000 kPa.
Key features
- 2 1/2 in (63 mm) brass gauges and a balanced stem seat that limits static increment
- A Cv of 2.0, plus 1/2 in seat and inlet ports for very high flow
- An operating range of -40°F to 140°F (-40°C to 60°C) with a 3000 PSIG (210 BAR) maximum inlet rating without peripherals
- CRN OF11809.2 registration and a brass barstock body
For pricing, please contact our experts.
