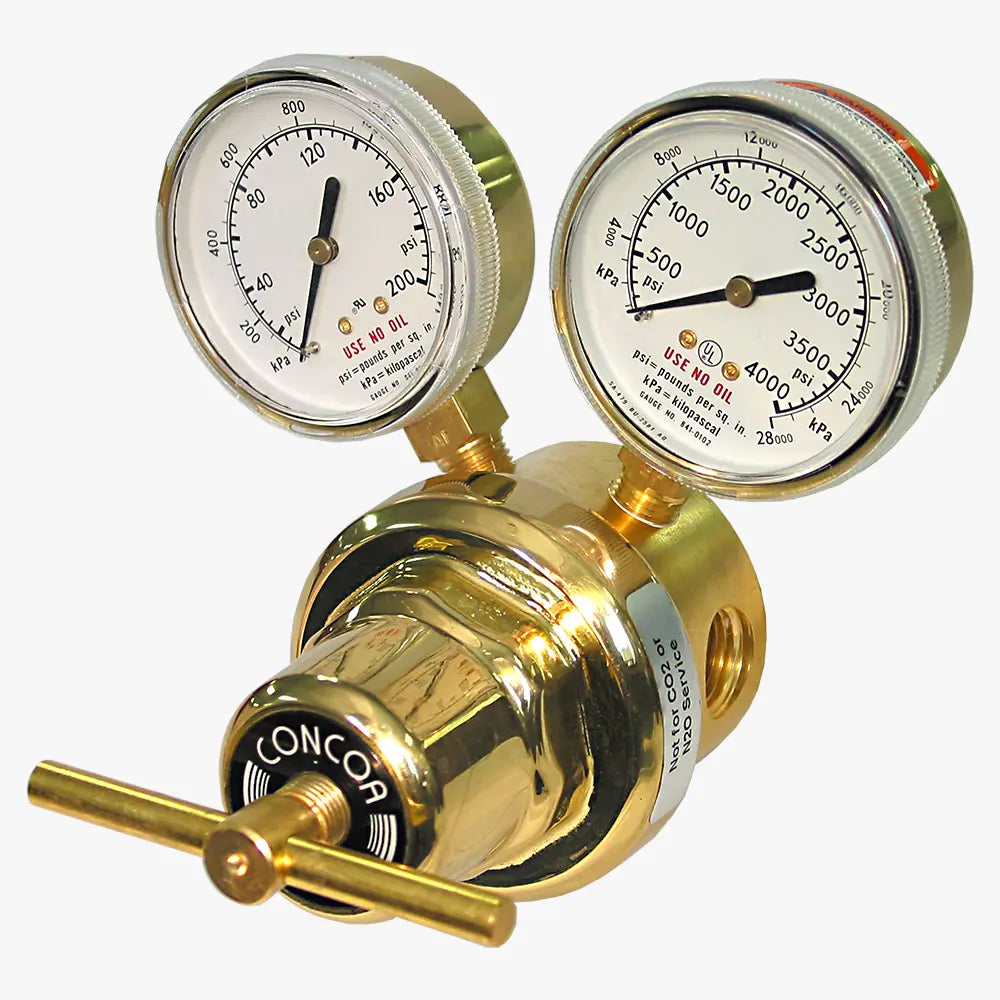

CONCOA 8066770-01-1 | 6700 Series Manifold Regulator | Acetylene, 15 PSIG Delivery, LH Inlet
Part Number : 8066770-01-1
The CONCOA 8066770-01-1 serves acetylene manifolds, with the inlet positioned LH. A chloroprene seat controls delivery pressure up to 15 PSIG (1 BAR), shown on 0-30 PSIG/0-200 kPa and 0-400 PSIG/0-2800 kPa gauges.
Key features
- A 3000 PSIG (210 BAR) maximum inlet rating without peripherals, plus an operating range of -40°F to 140°F (-40°C to 60°C)
- A brass barstock body, plus a balanced stem seat that steadies output as inlet pressure decays
- A rugged forged brass bonnet with 1/2 in FNPT inlet and outlet ports
- A 40-micron 316L stainless steel filter and 1/4 in FNPT gauge and relief ports
For pricing, please contact our experts.
